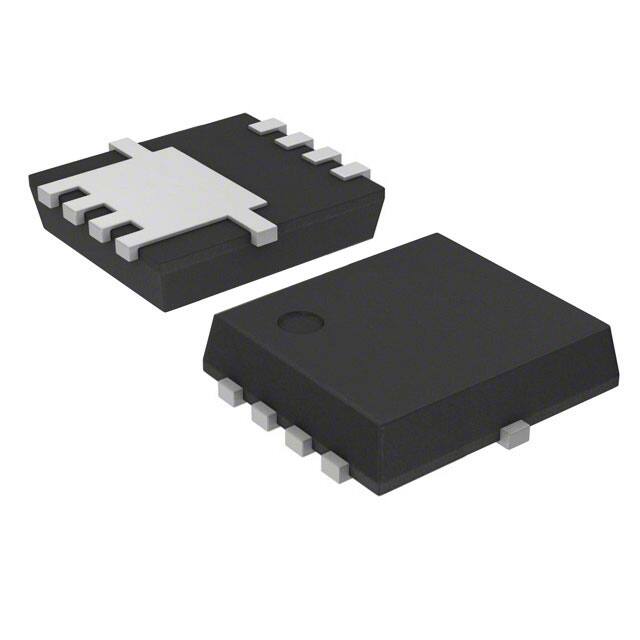

TPHR6503PL,L1Q

Specifications

Maks. Çalışma Sıcaklığı

175°C

Parça Durumu

Active

Current Continuous Drain Id25

150A Tc

Çalışma Sıcaklığı

175°C

Seri

U-MOSIX-H

Fet Type

N-Channel

Rds On Max Id Vgs

0.65mOhm @ 50A, 10V

Power Dissipation

960mW

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Drain To Source Breakdown Voltage

30V

Turn Off Delay Time

100 ns

Yayın Yılı

2016

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Gate Charge Qg Max Vgs

110nC @ 10V

RoHS Durumu

RoHS Compliant

Max Junction Temperature Tj

175°C

Input Capacitance

10nF

Kılıf / Paket

8-PowerVDFN

Input Capacitance Ciss Max Vds

10000pF @ 15V

Pin Sayısı

8

Continuous Drain Current Id

150A

Power Dissipation Max

960mW Ta 170W Tc

Threshold Voltage

1.1V

Montaj Tipi

Surface Mount

Drain To Source Voltage Vdss

30V

Yükseklik

1mm

Vgsth Max Id

2.1V @ 1mA

Drain To Source Resistance

410μOhm

Tedarikçi Cihaz Paketi

8-SOP Advance (5x5)

Montaj

Surface Mount

Fabrika Tedarik Süresi

12 Weeks

Number Of Channels

1

Vgs Max

±20V

Gate To Source Voltage Vgs

20V

Turn On Delay Time

36 ns

Rds On Max

650 μΩ
