Volume pricing
- 1+ pcs$1.37
- 10+ pcs$1.29
- 100+ pcs$1.22
- 500+ pcs$1.15
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

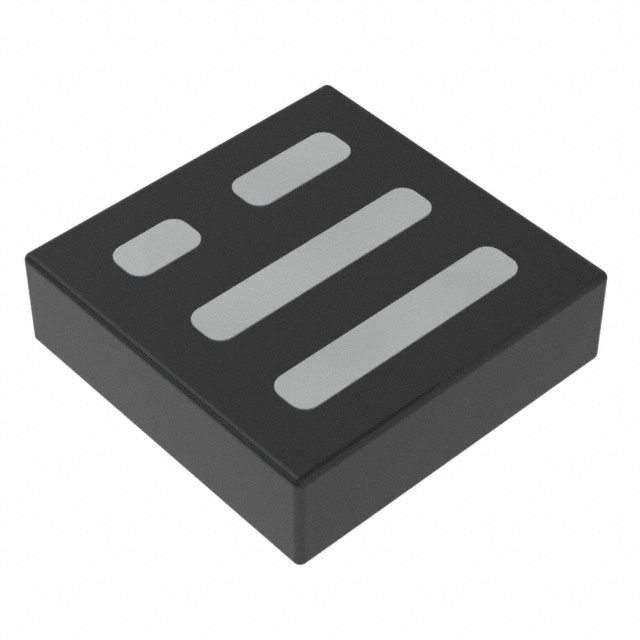

Specifications
- Temel Parça No
- CSD22205
- Montaj Tipi
- Surface Mount
- Power Dissipation Max
- 600mW Ta
- RoHS Durumu
- ROHS3 Compliant
- Operating Mode
- ENHANCEMENT MODE
- Yüzey Montaj
- YES
- Number Of Elements
- 1
- Terminal Pozisyonu
- BOTTOM
- Parça Durumu
- Active
- Drive Voltage Max Rds On Min Rds On
- 1.5V 4.5V
- Thickness
- 330μm
- Seri
- NexFET™
- Current Continuous Drain Id25
- 7.4A Ta
- Rds On Max Id Vgs
- 9.9m Ω @ 1A, 4.5V
- Input Capacitance Ciss Max Vds
- 1390pF @ 4V
- Çalışma Sıcaklığı
- -55°C~150°C TJ
- Vgs Max
- -6V
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Feedback Capmax Crss
- 250 pF
- Kılıf / Paket
- 4-XFLGA
- Gate Charge Qg Max Vgs
- 8.5nC @ 4.5V
- Terminal Formu
- NO LEAD
- Transistor Element Material
- SILICON
- Fet Type
- P-Channel
- Fabrika Tedarik Süresi
- 16 Weeks
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Pulsed Drain Currentmax Idm
- 71A
- Ambalaj
- Tape & Reel (TR)
- Kurşunsuz Kodu
- yes
- Genişlik
- 1.16mm
- Transistor Application
- SWITCHING
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Uzunluk
- 1.16mm
- Terminal Sayısı
- 4
- Lifecycle Status
- ACTIVE (Last Updated: 1 day ago)
- Ds Breakdown Voltagemin
- 8V
- Element Configuration
- Single
- Drain To Source Voltage Vdss
- 8V
- Pin Sayısı
- 4
- Vgsth Max Id
- 1.05V @ 250μA
