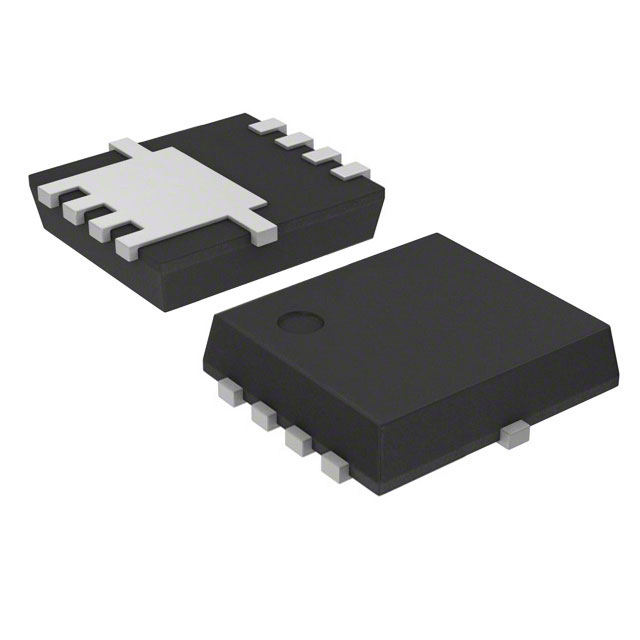

CSD17577Q3A

Specifications

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Fall Time Typ

4 ns

Çalışma Sıcaklığı

-55°C~150°C TJ

Yükseklik

900μm

Temel Parça No

CSD17577

Power Dissipation Max

2.8W Ta 53W Tc

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

Number Of Channels

1

JESD-609 Kodu

e3

Power Dissipation

53W

Pulsed Drain Currentmax Idm

239A

Genişlik

3.3mm

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Transistor Application

SWITCHING

Terminal Sayısı

5

Drain To Source Voltage Vdss

30V

Element Configuration

Single

Vgsth Max Id

1.8V @ 250μA

Pin Sayısı

8

Additional Feature

AVALANCHE RATED

ECCN Kodu

EAR99

Terminal Formu

FLAT

Fet Type

N-Channel

Max Junction Temperature Tj

150°C

Seri

NexFET™

Thickness

800μm

Rds On Max Id Vgs

4.8m Ω @ 16A, 10V

Current Continuous Drain Id25

35A Ta

Input Capacitance Ciss Max Vds

2310pF @ 15V

Gate To Source Voltage Vgs

20V

Montaj

Surface Mount

Vgs Max

±20V

Tepe Reflow Sıcaklığı (°C)

260

Contact Plating

Tin

Avalanche Energy Rating Eas

39 mJ

Operating Mode

ENHANCEMENT MODE

RoHS Durumu

ROHS3 Compliant

Terminal Pozisyonu

DUAL
