CSD16340Q3T

Specifications

Parça Durumu

Active

Number Of Elements

1

Terminal Pozisyonu

DUAL

RoHS Durumu

ROHS3 Compliant

Operating Mode

ENHANCEMENT MODE

Input Capacitance Ciss Max Vds

1350pF @ 12.5V

Current Continuous Drain Id25

60A Tc

Rds On Max Id Vgs

4.5m Ω @ 20A, 8V

Thickness

1mm

Seri

NexFET™

Vgs Max

+10V, -8V

Montaj

Surface Mount

Gate To Source Voltage Vgs

10V

Turn Off Delay Time

13.8 ns

Fabrika Tedarik Süresi

6 Weeks

Transistor Element Material

SILICON

Gate Charge Qg Max Vgs

9.2nC @ 4.5V

Rise Time

16.1ns

Terminal Kaplaması

Matte Tin (Sn)

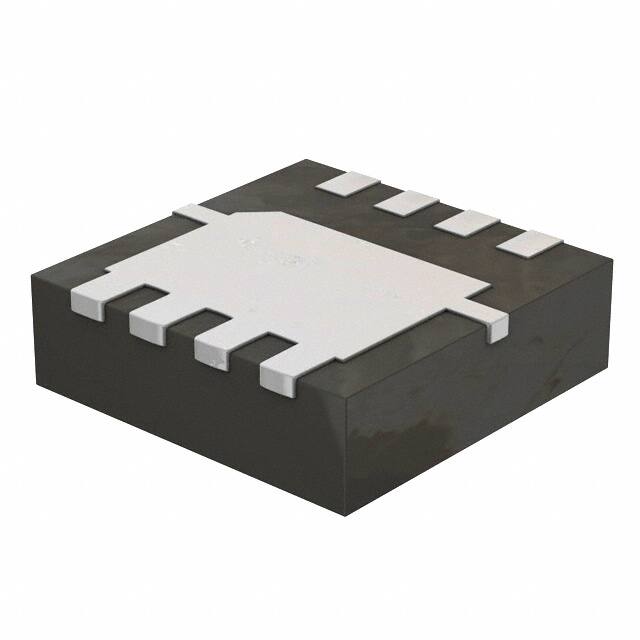

Kılıf / Paket

8-PowerTDFN

Continuous Drain Current Id

60A

Ambalaj

Tape & Reel (TR)

Case Connection

DRAIN

Turn On Delay Time

4.8 ns

REACH Uyumluluk Kodu

not_compliant

Ds Breakdown Voltagemin

25V

Uzunluk

3.3mm

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Kurşunsuz

Contains Lead

Montaj Tipi

Surface Mount

Power Dissipation Max

3W Ta

Temel Parça No

CSD16340

Çalışma Sıcaklığı

-55°C~150°C TJ

Fall Time Typ

5.2 ns

Drive Voltage Max Rds On Min Rds On

2.5V 8V

Feedback Capmax Crss

69 pF

Drain Currentmax Abs Id

21A

Additional Feature

AVALANCHE RATED

Fet Type

N-Channel

Terminal Formu

NO LEAD
