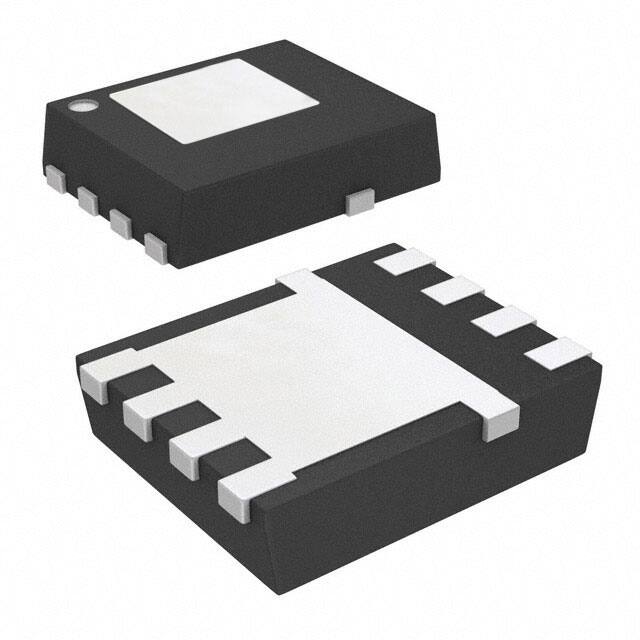

CSD16322Q5C

Specifications

Drive Voltage Max Rds On Min Rds On

3V 8V

Fall Time Typ

3.7 ns

Çalışma Sıcaklığı

-55°C~150°C TJ

Yükseklik

1.05mm

Temel Parça No

CSD16322

Kurşunsuz

Contains Lead

Montaj Tipi

Surface Mount

Power Dissipation Max

3.1W Ta

JESD-609 Kodu

e3

Power Dissipation

3.1W

Genişlik

6mm

Qualification Status

Not Qualified

Transistor Application

SWITCHING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Sayısı

5

Element Configuration

Single

Threshold Voltage

1.1V

Drain To Source Voltage Vdss

25V

Vgsth Max Id

1.4V @ 250μA

Pin Sayısı

8

Additional Feature

AVALANCHE RATED

ECCN Kodu

EAR99

Terminal Formu

NO LEAD

Fet Type

N-Channel

Thickness

1mm

Seri

NexFET™

Current Continuous Drain Id25

21A Ta 97A Tc

Rds On Max Id Vgs

5m Ω @ 20A, 8V

Input Capacitance Ciss Max Vds

1365pF @ 12.5V

Montaj

Surface Mount

Gate To Source Voltage Vgs

10V

Vgs Max

+10V, -8V

Tepe Reflow Sıcaklığı (°C)

260

Contact Plating

Tin

RoHS Durumu

ROHS3 Compliant

Operating Mode

ENHANCEMENT MODE

Nominal Vgs

1.1 V

Number Of Elements

1

Terminal Pozisyonu

DUAL

Parça Durumu

Obsolete
