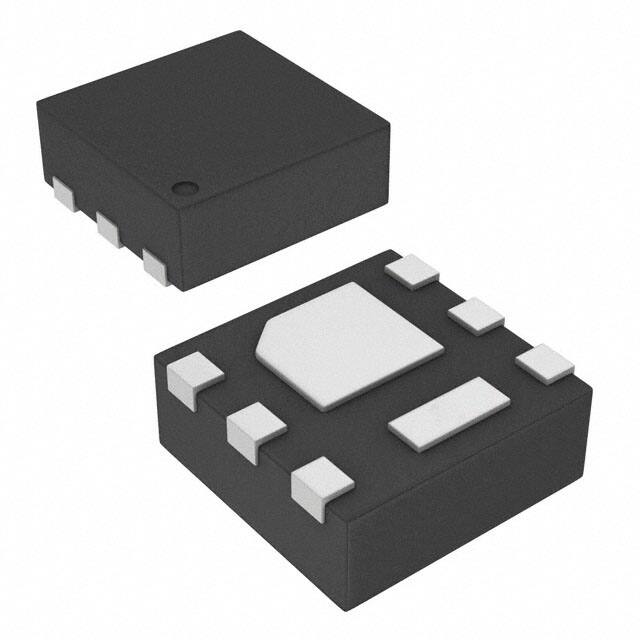

CSD16301Q2

Specifications

Turn On Delay Time

2.7 ns

Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Uzunluk

2mm

Continuous Drain Current Id

5A

Ambalaj

Tape & Reel (TR)

Pin Sayısı

6

Case Connection

DRAIN

Fabrika Tedarik Süresi

6 Weeks

Transistor Element Material

SILICON

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Rise Time

4.4ns

Gate Charge Qg Max Vgs

2.8nC @ 4.5V

Kılıf / Paket

6-SMD, Flat Leads

Turn Off Delay Time

4.1 ns

Drainsource On Resistancemax

0.034Ohm

Radyasyon Dayanımı

No

Tepe Reflow Sıcaklığı (°C)

260

Vgs Max

+10V, -8V

Gate To Source Voltage Vgs

10V

Montaj

Surface Mount

Input Capacitance Ciss Max Vds

340pF @ 12.5V

Rds On Max Id Vgs

24m Ω @ 4A, 8V

Current Continuous Drain Id25

5A Tc

Seri

NexFET™

Thickness

750μm

Drain To Source Breakdown Voltage

25V

Reach Svhc

No SVHC

Parça Durumu

Active

Terminal Pozisyonu

DUAL

Number Of Elements

1

Nominal Vgs

1.2 V

Operating Mode

ENHANCEMENT MODE

RoHS Durumu

ROHS3 Compliant

Contact Plating

Tin

Vgsth Max Id

1.55V @ 250μA

Pin Sayısı

6

Threshold Voltage

1.2V

Element Configuration

Single

Terminal Sayısı

6

Nem Hassasiyeti (MSL)

1 (Unlimited)
