CSD13381F4T

Specifications

Temel Parça No

CSD13381

Montaj Tipi

Surface Mount

Kurşunsuz

Lead Free

Power Dissipation Max

500mW Ta

Drive Voltage Max Rds On Min Rds On

1.8V 4.5V

Fall Time Typ

3.8 ns

Çalışma Sıcaklığı

-55°C~150°C TJ

Yükseklik

350μm

ECCN Kodu

EAR99

Terminal Formu

NO LEAD

Fet Type

N-Channel

Power Dissipation

500mW

Pulsed Drain Currentmax Idm

7A

Kurşunsuz Kodu

yes

Genişlik

635μm

Transistor Application

SWITCHING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Sayısı

3

Element Configuration

Single

Threshold Voltage

850mV

Pin Sayısı

3

Vgsth Max Id

1.1V @ 250μA

RoHS Durumu

ROHS3 Compliant

Operating Mode

ENHANCEMENT MODE

Number Of Elements

1

Terminal Pozisyonu

BOTTOM

Parça Durumu

Active

Reach Svhc

No SVHC

Drain To Source Breakdown Voltage

12V

Seri

FemtoFET™

Current Continuous Drain Id25

2.1A Ta

Rds On Max Id Vgs

180m Ω @ 500mA, 4.5V

Input Capacitance Ciss Max Vds

200pF @ 6V

Montaj

Surface Mount

Gate To Source Voltage Vgs

8V

Tepe Reflow Sıcaklığı (°C)

260

Drainsource On Resistancemax

0.4Ohm

Turn Off Delay Time

11 ns

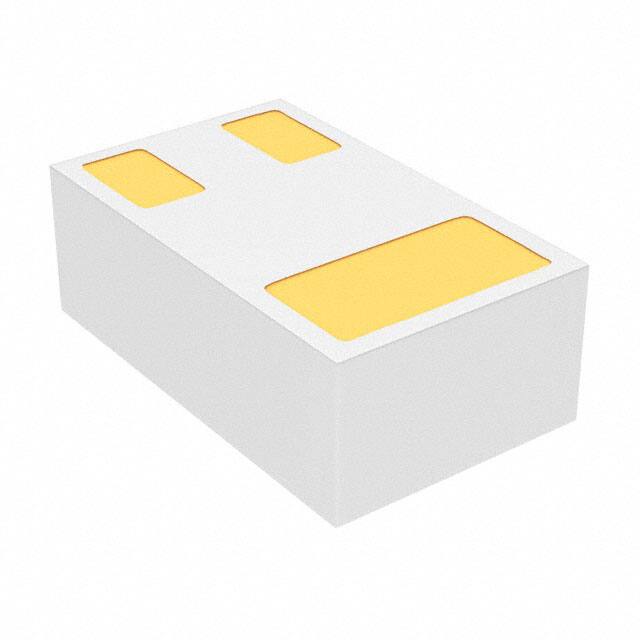

Kılıf / Paket

3-XFDFN

Gate Charge Qg Max Vgs

1.4nC @ 4.5V
