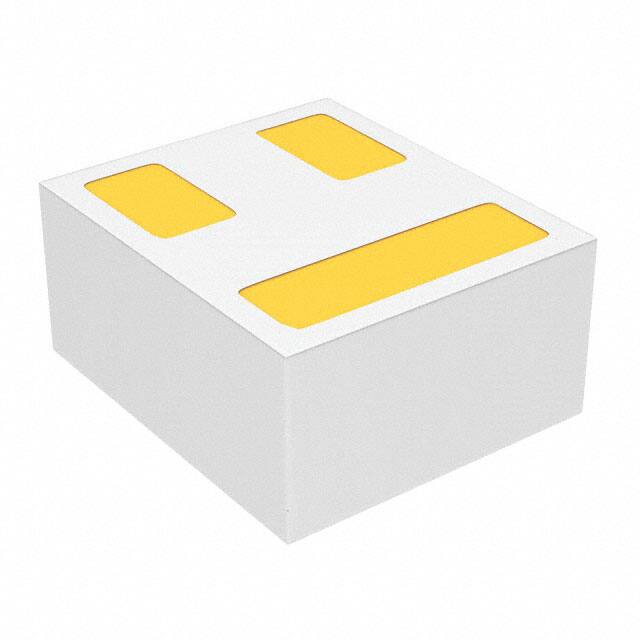

CSD13380F3

Specifications

Pin Sayısı

3

Vgsth Max Id

1.3V @ 250μA

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Terminal Sayısı

3

Uzunluk

690μm

Drain To Source Voltage Vdss

12V

Ds Breakdown Voltagemin

12V

Element Configuration

Single

Genişlik

600μm

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Transistor Application

SWITCHING

Ambalaj

Tape & Reel (TR)

Transistor Element Material

SILICON

Fet Type

N-Channel

Fabrika Tedarik Süresi

6 Weeks

Kılıf / Paket

3-SMD, No Lead

Gate Charge Qg Max Vgs

1.2nC @ 4.5V

ECCN Kodu

EAR99

Drainsource On Resistancemax

0.092Ohm

Drain Currentmax Abs Id

2.1A

Feedback Capmax Crss

12.5 pF

Vgs Max

8V

Rds On Max Id Vgs

76m Ω @ 400mA, 4.5V

Current Continuous Drain Id25

3.6A Ta

Çalışma Sıcaklığı

-55°C~150°C TJ

Input Capacitance Ciss Max Vds

156pF @ 6V

Drive Voltage Max Rds On Min Rds On

1.8V 4.5V

Seri

FemtoFET™

Thickness

345μm

Terminal Pozisyonu

BOTTOM

Number Of Elements

1

Parça Durumu

Active

Operating Mode

ENHANCEMENT MODE

RoHS Durumu

ROHS3 Compliant

Yüzey Montaj

YES

Power Dissipation Max

500mW Ta

Montaj Tipi

Surface Mount

Temel Parça No

CSD13380
