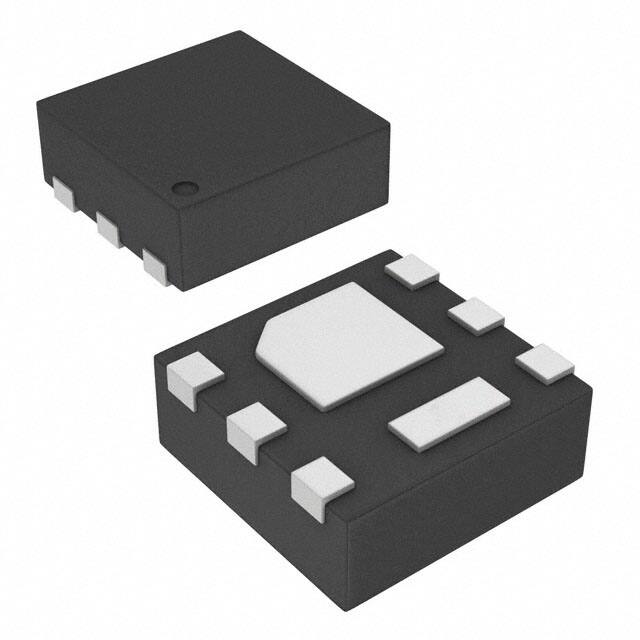

CSD13202Q2

Specifications

Threshold Voltage

800mV

Element Configuration

Single

Terminal Sayısı

6

Vgsth Max Id

1.1V @ 250μA

Pin Sayısı

6

Power Dissipation

2.7W

JESD-609 Kodu

e4

Transistor Application

SWITCHING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Genişlik

2mm

Fet Type

N-Channel

Terminal Formu

NO LEAD

Additional Feature

AVALANCHE RATED

ECCN Kodu

EAR99

Drive Voltage Max Rds On Min Rds On

2.5V 4.5V

Çalışma Sıcaklığı

-55°C~150°C TJ

Fall Time Typ

13.6 ns

Number Of Channels

1

Temel Parça No

CSD13302

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

Power Dissipation Max

2.7W Ta

Uzunluk

2mm

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Turn On Delay Time

4.5 ns

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Ambalaj

Tape & Reel (TR)

Case Connection

DRAIN

Continuous Drain Current Id

22A

Gate Charge Qg Max Vgs

6.6nC @ 4.5V

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Rise Time

28ns

Kılıf / Paket

6-VDFN Exposed Pad

Fabrika Tedarik Süresi

8 Weeks

Transistor Element Material

SILICON

Turn Off Delay Time

11 ns

Montaj

Surface Mount

Gate To Source Voltage Vgs

8V

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED
