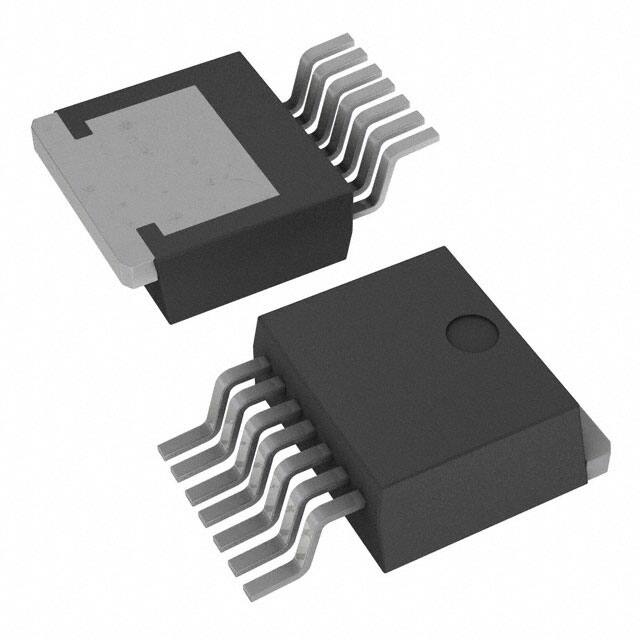

SCTH90N65G2V-7

Specifications

Terminal Pozisyonu

SINGLE

Yüzey Montaj

YES

Current Continuous Drain Id25

90A Tc

Transistor Application

SWITCHING

Input Capacitance Ciss Max Vds

3300pF @ 400V

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Operating Mode

ENHANCEMENT MODE

Vgs Max

+22V, -10V

Ds Breakdown Voltagemin

650V

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Terminal Sayısı

7

Ambalaj

Tape & Reel (TR)

Gate Charge Qg Max Vgs

157nC @ 18V

Vgsth Max Id

5V @ 1mA

Çalışma Sıcaklığı

-55°C~175°C TJ

Pulsed Drain Currentmax Idm

220A

Temel Parça No

SCTH90

Case Connection

DRAIN

Drive Voltage Max Rds On Min Rds On

18V

Drain To Source Voltage Vdss

650V

Configuration

SINGLE WITH BUILT-IN DIODE

Number Of Elements

1

Power Dissipation Max

330W Tc

Rds On Max Id Vgs

26m Ω @ 50A, 18V

Jesd30 Code

R-PSSO-G7

Kılıf / Paket

TO-263-8, D2Pak (7 Leads + Tab), TO-263CA

Terminal Formu

GULL WING

Drain Currentmax Abs Id

110A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fet Type

N-Channel

Drainsource On Resistancemax

0.024Ohm
