Specifications
- Vgs Max
- +22V, -4V
- Turn On Delay Time
- 14 ns
- Parça Durumu
- Active
- Operating Mode
- ENHANCEMENT MODE
- Continuous Drain Current Id
- 21A
- Montaj
- Through Hole
- Vgsth Max Id
- 5.6V @ 3.33mA
- Gate Charge Qg Max Vgs
- 38nC @ 18V
- Power Dissipation
- 103W
- Terminal Sayısı
- 3
- Ambalaj
- Tube
- Max Junction Temperature Tj
- 175°C
- Current Continuous Drain Id25
- 21A Tc
- Drain To Source Breakdown Voltage
- 650V
- Terminal Pozisyonu
- SINGLE
- Kurşunsuz Kodu
- yes
- RoHS Durumu
- ROHS3 Compliant
- Montaj Tipi
- Through Hole
- REACH Uyumluluk Kodu
- not_compliant
- Yükseklik
- 25.5mm
- Transistor Application
- SWITCHING
- Input Capacitance Ciss Max Vds
- 460pF @ 500V
- JESD-609 Kodu
- e3

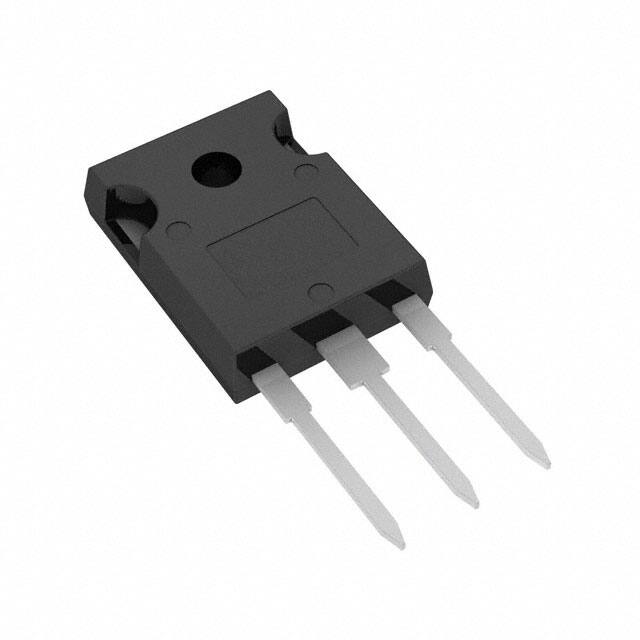

- Kılıf / Paket
- TO-247-3
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Jesd30 Code
- R-PSFM-T3
- Turn Off Delay Time
- 23 ns
- Number Of Channels
- 1
- Kurşunsuz
- Lead Free
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fet Type
- N-Channel
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Drive Voltage Max Rds On Min Rds On
- 18V
- Fabrika Tedarik Süresi
- 30 Weeks
- Terminal Kaplaması
- Tin (Sn)
- Çalışma Sıcaklığı
- 175°C TJ
- Pulsed Drain Currentmax Idm
- 52A
- Power Dissipation Max
- 103W Tc
- Rds On Max Id Vgs
- 156m Ω @ 6.7A, 18V
- Number Of Elements
- 1
