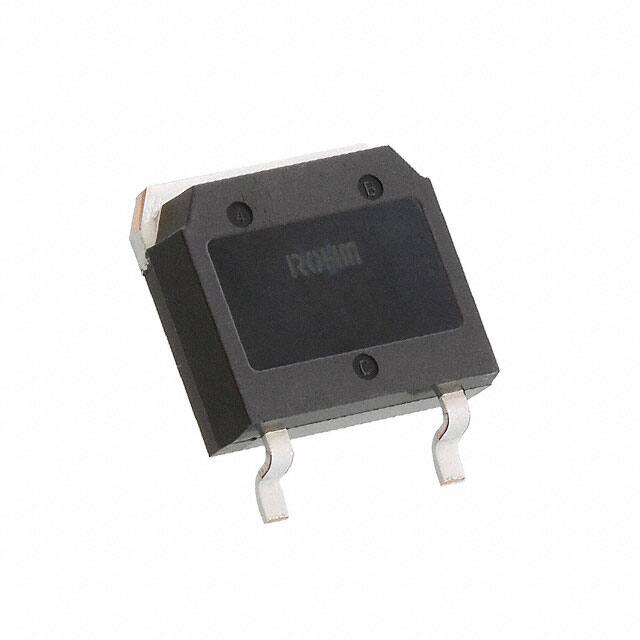

SCT2750NYTB

Specifications

Jesd30 Code

R-PSSO-G2

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Formu

GULL WING

Kılıf / Paket

TO-268-3, D3Pak (2 Leads + Tab), TO-268AA

Drain Currentmax Abs Id

5.9A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Fet Type

N-Channel

Drainsource On Resistancemax

0.975Ohm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pulsed Drain Currentmax Idm

14A

Çalışma Sıcaklığı

175°C TJ

Fabrika Tedarik Süresi

19 Weeks

Drive Voltage Max Rds On Min Rds On

18V

Drain To Source Voltage Vdss

1700V

Case Connection

DRAIN

Number Of Elements

1

Configuration

SINGLE WITH BUILT-IN DIODE

Rds On Max Id Vgs

975m Ω @ 1.7A, 18V

Power Dissipation Max

57W Tc

Operating Mode

ENHANCEMENT MODE

Parça Durumu

Active

Vgs Max

+22V, -6V

Ds Breakdown Voltagemin

1700V

Ambalaj

Tape & Reel (TR)

Terminal Sayısı

2

Gate Charge Qg Max Vgs

17nC @ 18V

Vgsth Max Id

4V @ 630μA

Terminal Pozisyonu

SINGLE

Current Continuous Drain Id25

5.9A Tc

Yüzey Montaj

YES

Input Capacitance Ciss Max Vds

275pF @ 800V

Transistor Application

SWITCHING

REACH Uyumluluk Kodu

not_compliant

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Yayın Yılı

2017
