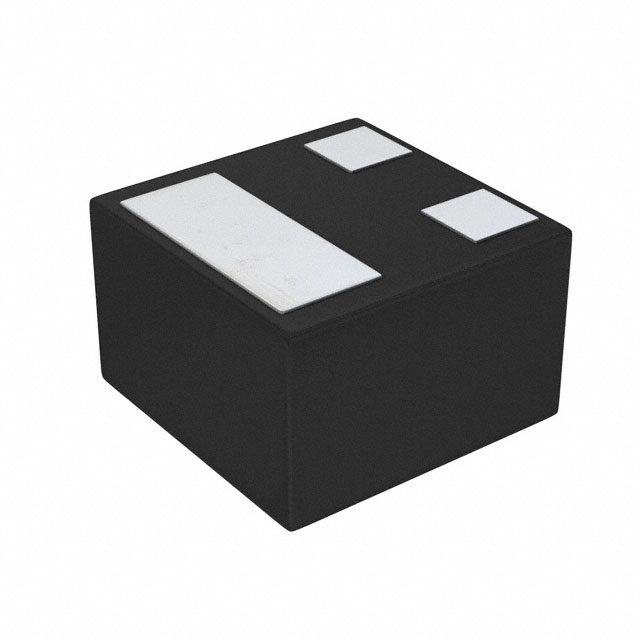

NTNS3190NZT5G

Specifications

Continuous Drain Current Id

224mA

Vgs Max

±8V

Yayın Yılı

2012

Drive Voltage Max Rds On Min Rds On

1.5V 4.5V

Ambalaj

Tape & Reel (TR)

Pin Sayısı

3

Çalışma Sıcaklığı

-55°C~150°C TJ

Rise Time

35ns

Montaj

Surface Mount

Transistor Application

SWITCHING

Turn On Delay Time

18 ns

JESD-609 Kodu

e4

Configuration

SINGLE WITH BUILT-IN DIODE AND RESISTOR

Terminal Pozisyonu

BOTTOM

ECCN Kodu

EAR99

Terminal Sayısı

3

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Fet Type

N-Channel

Operating Mode

ENHANCEMENT MODE

Ds Breakdown Voltagemin

20V

Gate Charge Qg Max Vgs

0.7nC @ 4.5V

RoHS Durumu

ROHS3 Compliant

Drain To Source Voltage Vdss

20V

Gate To Source Voltage Vgs

8V

Terminal Formu

NO LEAD

Power Dissipation Max

120mW Ta

Kılıf / Paket

3-XFDFN

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Rds On Max Id Vgs

1.4 Ω @ 100mA, 4.5V

Case Connection

DRAIN

Number Of Channels

1

Current Continuous Drain Id25

224mA Ta

Input Capacitance Ciss Max Vds

15.8pF @ 15V

Transistor Element Material

SILICON

Number Of Elements

1

Fall Time Typ

110 ns

Vgsth Max Id

1V @ 250μA

Fabrika Tedarik Süresi

7 Weeks

Parça Durumu

Active
