NTD4904N-35G

Specifications

Fet Type

N-Channel

Case Connection

DRAIN

Vgs Max

±20V

Power Dissipation

52W

Input Capacitance Ciss Max Vds

3052pF @ 15V

JESD-609 Kodu

e3

Drain To Source Breakdown Voltage

30V

Rds On Max Id Vgs

3.7m Ω @ 30A, 10V

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

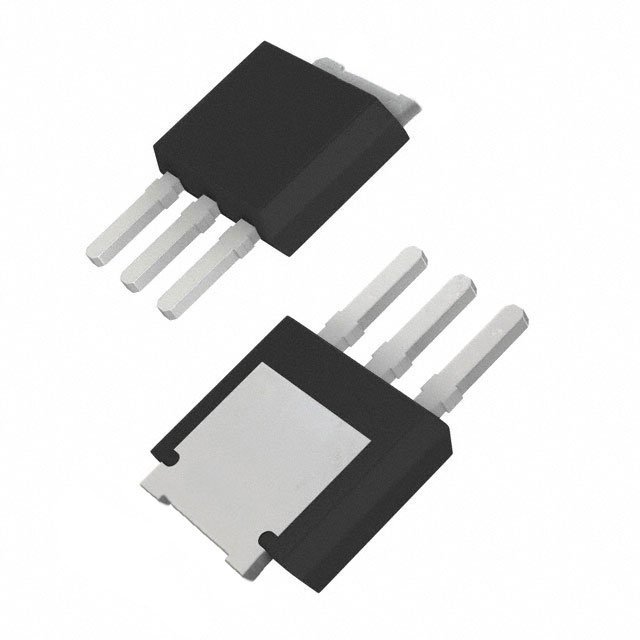

Kılıf / Paket

TO-251-3 Stub Leads, IPak

Pin Sayısı

3

Gate To Source Voltage Vgs

20V

Kurşunsuz

Lead Free

Kurşunsuz Kodu

yes

Continuous Drain Current Id

79A

ECCN Kodu

EAR99

Pin Sayısı

3

Vgsth Max Id

2.2V @ 250μA

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Power Dissipation Max

1.4W Ta 52W Tc

Çalışma Sıcaklığı

-55°C~175°C TJ

Drainsource On Resistancemax

0.0055Ohm

Yüzey Montaj

NO

Current Continuous Drain Id25

13A Ta 79A Tc

Lifecycle Status

LIFETIME (Last Updated: 14 hours ago)

RoHS Durumu

RoHS Compliant

Ambalaj

Tube

Radyasyon Dayanımı

No

Fabrika Tedarik Süresi

2 Weeks

Montaj Tipi

Through Hole

Gate Charge Qg Max Vgs

41nC @ 10V

Operating Mode

ENHANCEMENT MODE

Transistor Application

SWITCHING

Contact Plating

Tin

Terminal Sayısı

3

Yayın Yılı

2010

Avalanche Energy Rating Eas

68.4 mJ

Element Configuration

Single

Number Of Elements

1
