Specifications
- Drive Voltage Max Rds On Min Rds On
- 10V
- Number Of Channels
- 1
- Max Junction Temperature Tj
- 150°C
- Yükseklik
- 23.8mm
- Montaj
- Through Hole
- Fet Type
- N-Channel
- ECCN Kodu
- EAR99
- Lifecycle Status
- ACTIVE (Last Updated: 2 days ago)
- JESD-609 Kodu
- e3
- Fall Time Typ
- 47 ns
- Yayın Yılı
- 2000
- Threshold Voltage
- 4V
- Drain To Source Breakdown Voltage
- 1.5kV
- Kurşunsuz
- Lead Free
- Parça Durumu
- Active
- Radyasyon Dayanımı
- No
- Continuous Drain Current Id
- 2.5A
- Gate To Source Voltage Vgs
- 30V
- Drain To Source Voltage Vdss
- 1500V

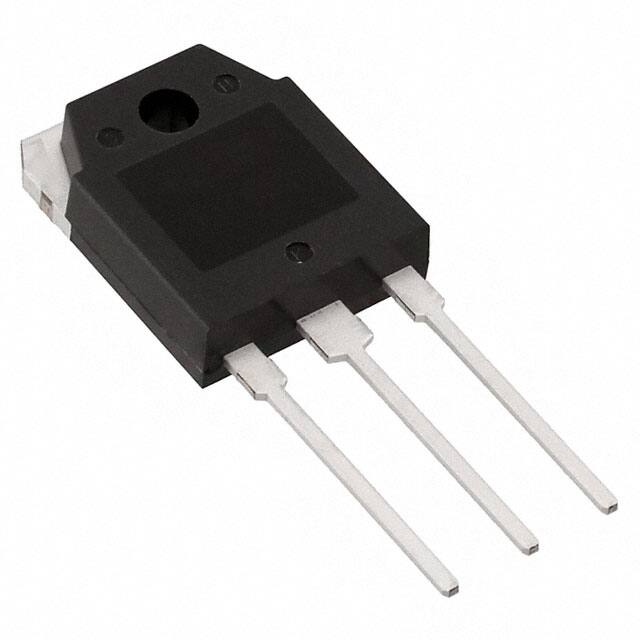

- Kılıf / Paket
- TO-3PL
- Fabrika Tedarik Süresi
- 23 Weeks
- Gate Charge Qg Max Vgs
- 34nC @ 10V
- Power Dissipation
- 140W
- Rise Time
- 24ns
- Genişlik
- 15.6mm
- Vgs Max
- ±30V
- Turn On Delay Time
- 15 ns
- Rds On Max Id Vgs
- 10.5 Ω @ 1.25A, 10V
- Çalışma Sıcaklığı
- 150°C TJ
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Power Dissipation Max
- 2.5W Ta 140W Tc
- Element Configuration
- Single
- Ambalaj
- Tube
- Kurşunsuz Kodu
- yes
- Pin Sayısı
- 3
- Current Continuous Drain Id25
- 2.5A Ta
- Input Capacitance Ciss Max Vds
- 650pF @ 30V
- Uzunluk
- 39.9mm
- Reach Svhc
- No SVHC
- Turn Off Delay Time
- 140 ns
