Specifications
- Drain To Source Breakdown Voltage
- 1.5kV
- Number Of Channels
- 1
- JESD-609 Kodu
- e3
- Pin Sayısı
- 3
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj
- Through Hole
- Continuous Drain Current Id
- 2.5A
- Ambalaj
- Tube
- Yayın Yılı
- 2000
- Montaj Tipi
- Through Hole
- Turn Off Delay Time
- 148 ns
- Reach Svhc
- No SVHC
- Lifecycle Status
- ACTIVE (Last Updated: 1 day ago)
- RoHS Durumu
- ROHS3 Compliant
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- Radyasyon Dayanımı
- No
- Rds On Max Id Vgs
- 10.5 Ω @ 1A, 10V
- Power Dissipation Max
- 2W Ta 32W Tc
- Parça Durumu
- Active
- Turn On Delay Time
- 15 ns
- Weight
- 6.000006g
- Current Continuous Drain Id25
- 2.5A Ta
- Gate Charge Qg Max Vgs
- 34nC @ 10V
- Fabrika Tedarik Süresi
- 4 Weeks
- Rise Time
- 20ns
- Fall Time Typ
- 44 ns
- Element Configuration
- Single
- Drive Voltage Max Rds On Min Rds On
- 10V
- Drain To Source Voltage Vdss
- 1500V
- Terminal Kaplaması
- Tin (Sn)
- Uzunluk
- 28.85mm
- Vgs Max
- ±30V
- Genişlik
- 10.16mm
- Çalışma Sıcaklığı
- 150°C TJ
- Gate To Source Voltage Vgs
- 30V
- Kurşunsuz
- Lead Free
- Yükseklik
- 4.7mm
- Input Capacitance Ciss Max Vds
- 650pF @ 30V

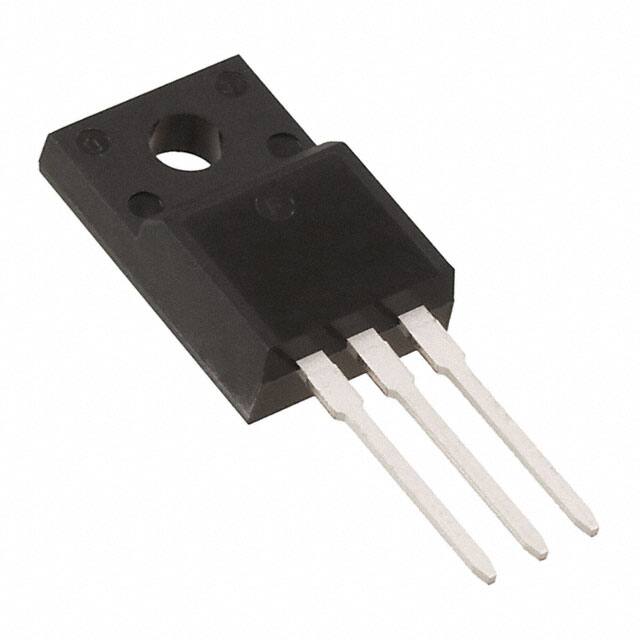

- Kılıf / Paket
- TO-220-3 Full Pack
