Volume pricing
- 1+ pcs$0.42
- 10+ pcs$0.40
- 100+ pcs$0.38
- 500+ pcs$0.36
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Gate Charge Qg Max Vgs
- 10nC @ 4.5V
- Vgsth Max Id
- 1.7V @ 250μA
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Drain To Source Breakdown Voltage
- 25V
- ECCN Kodu
- EAR99
- Element Configuration
- Single
- Fabrika Tedarik Süresi
- 11 Weeks
- Uzunluk
- 3.3mm
- Turn On Delay Time
- 2.5 ns
- Fet Type
- N-Channel
- Yüzey Montaj
- YES
- Continuous Drain Current Id
- 48A

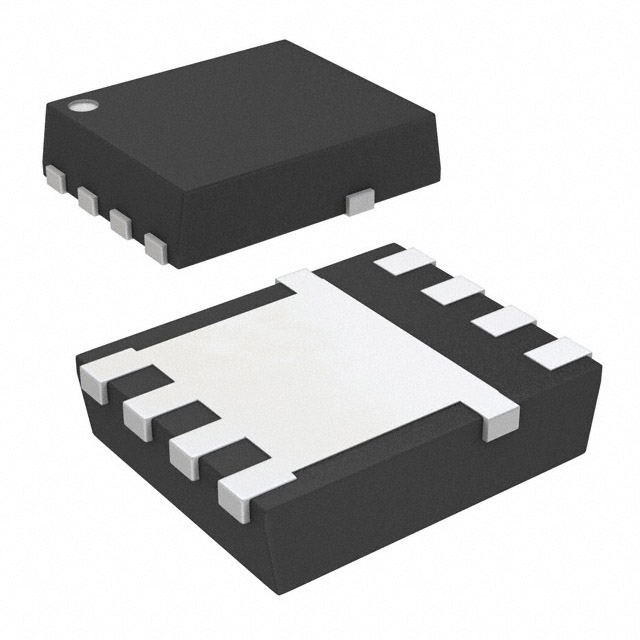

- Kılıf / Paket
- 8-PowerTDFN
- Current Continuous Drain Id25
- 48A Tc
- RoHS Durumu
- ROHS3 Compliant
- Drive Voltage Max Rds On Min Rds On
- 4.5V 10V
- REACH Uyumluluk Kodu
- not_compliant
- Tepe Reflow Sıcaklığı (°C)
- 260
- Fall Time Typ
- 2.9 ns
- Gate To Source Voltage Vgs
- 10V
- Tepe Reflow Süresi (maks. sn)
- 40
- Montaj Tipi
- Surface Mount
- Parça Durumu
- Obsolete
- Ambalaj
- Tape & Reel (TR)
- Yükseklik
- 1mm
- Kurşunsuz
- Lead Free
- Yayın Yılı
- 2008
- Power Dissipation
- 1.8W
- Rds On Max Id Vgs
- 10.5m Ω @ 10V
- Vgs Max
- +10V, -8V
- Input Capacitance Ciss Max Vds
- 580pF @ 12.5V
- Çalışma Sıcaklığı
- -55°C~150°C TJ
- Rise Time
- 9.3ns
- JESD-609 Kodu
- e3
- Turn Off Delay Time
- 5.3 ns
- Genişlik
- 3.3mm
- Power Dissipation Max
- 1.8W Ta
- Temel Parça No
- MCP87090
- Pin Sayısı
- 8
- Drain Currentmax Abs Id
- 50A
