Volume pricing
- 1+ pcs$4.12
- 10+ pcs$3.88
- 100+ pcs$3.66
- 500+ pcs$3.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Vgs Max
- +10V, -8V
- Rds On Max Id Vgs
- 2.3m Ω @ 25A, 10V
- Input Capacitance Ciss Max Vds
- 2310pF @ 12.5V
- Yükseklik
- 1mm
- Power Dissipation
- 2.2W
- Yayın Yılı
- 2004
- Pin Sayısı
- 8
- Turn Off Delay Time
- 21 ns
- Genişlik
- 6mm
- Power Dissipation Max
- 2.2W Ta
- Temel Parça No
- MCP87022
- Reach Svhc
- No SVHC
- Terminal Kaplaması
- Matte Tin (Sn) - annealed
- Nominal Vgs
- 1.3 V
- Rise Time
- 27ns
- Çalışma Sıcaklığı
- -55°C~150°C TJ
- JESD-609 Kodu
- e3
- Fall Time Typ
- 17 ns
- Tepe Reflow Sıcaklığı (°C)
- 260
- REACH Uyumluluk Kodu
- not_compliant
- Gate To Source Voltage Vgs
- 10V
- Drive Voltage Max Rds On Min Rds On
- 4.5V 10V
- Current Continuous Drain Id25
- 100A Tc
- RoHS Durumu
- ROHS3 Compliant
- Ambalaj
- Tape & Reel (TR)
- Parça Durumu
- Obsolete
- Tepe Reflow Süresi (maks. sn)
- 40
- Montaj Tipi
- Surface Mount
- Yüzey Montaj
- YES
- Fet Type
- N-Channel
- Uzunluk
- 5mm
- Turn On Delay Time
- 7.6 ns
- Continuous Drain Current Id
- 100A

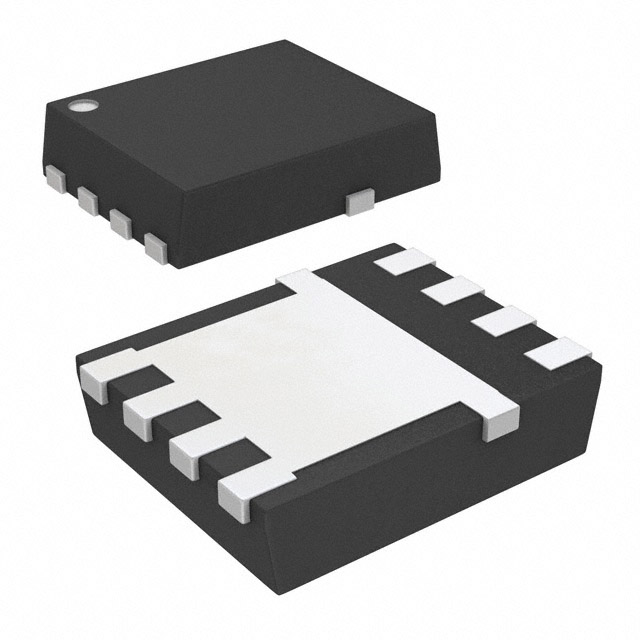

- Kılıf / Paket
- 8-PowerTDFN
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Gate Charge Qg Max Vgs
- 29nC @ 4.5V
- Vgsth Max Id
- 1.6V @ 250μA
- Fabrika Tedarik Süresi
- 11 Weeks
- Element Configuration
- Single
- ECCN Kodu
- EAR99
