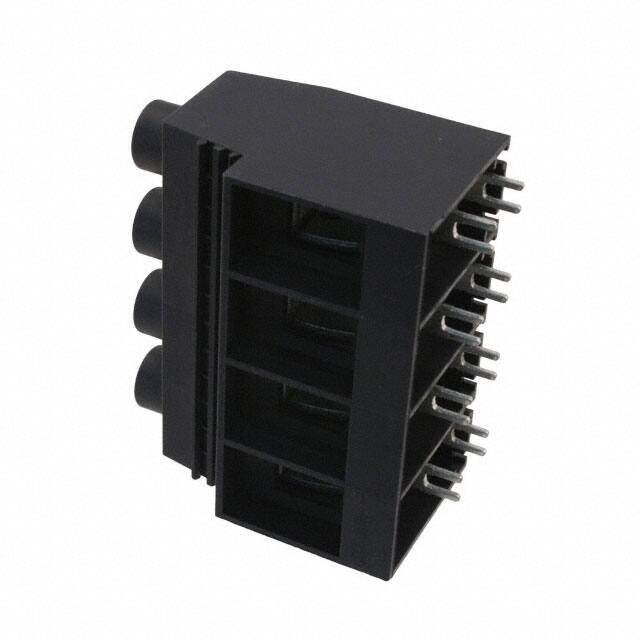

1047150000

Teknik Özellikler

Terminal

Screw

Seri

Omnimate LXXX

Nominal Gerilim

600V

Montaj

Through Hole

Çalışma Sıcaklığı

-50°C~120°C

RoHS Durumu

RoHS Compliant

Wire Gauge Min

1 AWG

Flammability Rating

UL94 V-0

Pitch

0.591 15.00mm

Wire Gauge Max

20 AWG

Number Of Positions Per Level

4

Renk

Black

Contact Plating

Tin

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Positions Per Level

4

Yayın Yılı

2011

Contact Material Plating

Copper Alloy - Tin Plated

Parça Durumu

Active

Screw Thread

M6

Mating Orientation

Horizontal with Board

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Onay Kuruluşu

CSA, UR

Hole Diameter

1.6 mm

Akım Değeri

127A

Stripping Length

18mm

Ambalaj

Bulk

Wire Termination

Screw - Clamping Yoke, Tension Sleeve

Fabrika Tedarik Süresi

16 Weeks

Number Of Levels

1

Housing Material

Thermoplastic, Wemid

Wire Gauge

1-20 AWG
