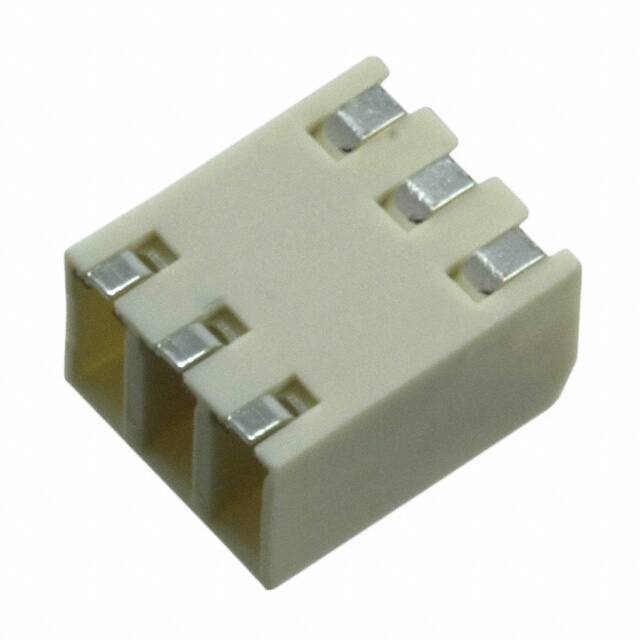

009276003021106

Teknik Özellikler

Mil Conformance

NO

Renk

White

Wire Gauge Min

18 AWG

Connector Type

RECTANGULAR POWER CONNECTOR

Ambalaj

Tape & Reel (TR)

Genişlik

7.5mm

Wire Gauge

18-24 AWG

Uzunluk

9mm

Nominal Gerilim

250V

Gender

Receptacle

Pitch

0.098 2.50mm

Terminal

Solder

Total Number Of Contacts

3

Nem Hassasiyeti (MSL)

3 (168 Hours)

Wire Termination

Screwless - Leg Spring, Push-In Spring

Depth

9mm

Shell Material

GLASS FILLED POLYAMIDE46

Mating Orientation

Horizontal with Board

Empty Shell

NO

Orientation

Right Angle

Contact Plating

Tin

Pozisyon Sayısı

3

Contact Materials

Copper

Akım

6A

Number Of Levels

1

Din Conformance

NO

Mixed Contacts

NO

Montaj

Surface Mount, Through Hole

Kurşunsuz Kodu

yes

Max Supply Voltage Ac

250V

Kurşunsuz

Lead Free

Wire Gauge Max

24 AWG

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Iec Conformance

NO

JESD-609 Kodu

e3

Housing Material

Polyamide (PA46), Nylon 4/6, Glass Filled

Max Voltage Rating Ac

250V

Contact Material Plating

Copper Alloy - Tin Plated
