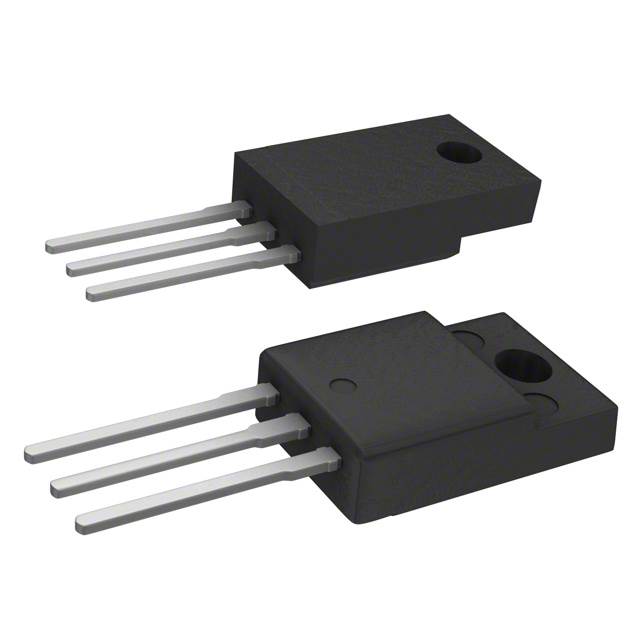

STP80NF55-06FP

Teknik Özellikler

Montaj Tipi

Through Hole

Turn Off Delay Time

125 ns

Transistor Element Material

SILICON

Input Capacitance Ciss Max Vds

4400pF @ 25V

Pin Sayısı

3

Terminal Kaplaması

Matte Tin (Sn)

Çalışma Sıcaklığı

-55°C~175°C TJ

Seri

STripFET™ II

Genişlik

4.6mm

Drain To Source Breakdown Voltage

55V

Fall Time Typ

65 ns

Case Connection

ISOLATED

Rise Time

155ns

Power Dissipation

45W

Gate To Source Voltage Vgs

20V

Kılıf / Paket

TO-220-3 Full Pack

Continuous Drain Current Id

60A

Operating Mode

ENHANCEMENT MODE

Pin Sayısı

3

Temel Parça No

STP80N

Number Of Elements

1

RoHS Durumu

ROHS3 Compliant

Uzunluk

10.4mm

Reach Svhc

No SVHC

Current Continuous Drain Id25

60A Tc

Vgsth Max Id

4V @ 250μA

Rds On Max Id Vgs

6.5m Ω @ 40A, 10V

Transistor Application

SWITCHING

Vgs Max

±20V

Turn On Delay Time

27 ns

Ambalaj

Tube

Power Dissipation Max

45W Tc

Element Configuration

Single

Nem Hassasiyeti (MSL)

1 (Unlimited)

Threshold Voltage

3V

Drainsource On Resistancemax

0.0065Ohm

Jedec95 Code

TO-220AB

Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

JESD-609 Kodu

e3

Fet Type

N-Channel
