STL8N6F7

Teknik Özellikler

Power Dissipation Max

3W Ta 60W Tc

Rds On Max Id Vgs

25m Ω @ 4A, 10V

Çalışma Sıcaklığı

-55°C~150°C TJ

Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Input Capacitance Ciss Max Vds

450pF @ 25V

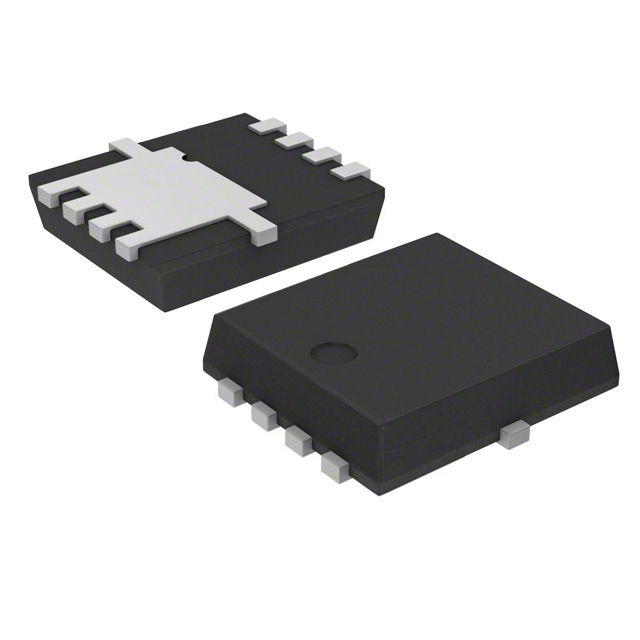

Kılıf / Paket

8-PowerVDFN

Parça Durumu

Active

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Fabrika Tedarik Süresi

22 Weeks

Turn On Delay Time

7.85 ns

Continuous Drain Current Id

36A

Turn Off Delay Time

12.1 ns

Fet Type

N-Channel

Manufacturer Package Identifier

PowerFLATTM-8465286

Current Continuous Drain Id25

36A Tc

Pin Sayısı

8

Gate Charge Qg Max Vgs

8nC @ 10V

Yükseklik

900μm

Max Junction Temperature Tj

150°C

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Power Dissipation

60W

Drain To Source Breakdown Voltage

60V

Montaj

Surface Mount

Gate To Source Voltage Vgs

20V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Temel Parça No

STL8

Number Of Channels

1

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

Vgs Max

±20V

Vgsth Max Id

4V @ 250μA

Drive Voltage Max Rds On Min Rds On

10V

ECCN Kodu

EAR99

Seri

STripFET™ F7

Ambalaj

Tape & Reel (TR)
