STL8N10LF3

Teknik Özellikler

Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

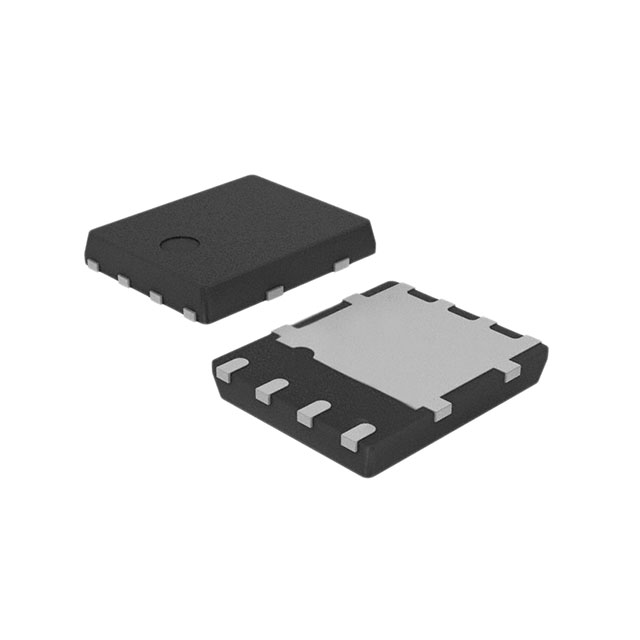

Kılıf / Paket

8-PowerVDFN

Input Capacitance Ciss Max Vds

970pF @ 25V

Fabrika Tedarik Süresi

12 Weeks

Turn On Delay Time

8.7 ns

Jesd30 Code

R-PDSO-F5

Parça Durumu

Active

Power Dissipation Max

4.3W Ta 70W Tc

Additional Feature

AVALANCHE RATED

Çalışma Sıcaklığı

-55°C~175°C TJ

Rds On Max Id Vgs

35m Ω @ 4A, 10V

Pin Sayısı

8

Terminal Formu

FLAT

Max Junction Temperature Tj

175°C

Gate Charge Qg Max Vgs

20.5nC @ 10V

Yükseklik

1mm

Number Of Elements

1

Turn Off Delay Time

50.6 ns

Continuous Drain Current Id

20A

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

Fet Type

N-Channel

Current Continuous Drain Id25

20A Tc

Temel Parça No

STL8

Radyasyon Dayanımı

No

Drainsource On Resistancemax

0.05Ohm

Number Of Channels

1

Element Configuration

Single

Transistor Application

SWITCHING

Terminal Pozisyonu

DUAL

Rise Time

9.6ns

Fall Time Typ

5.2 ns

Power Dissipation

70W

Terminal Sayısı

5

Drain To Source Breakdown Voltage

100V

Montaj

Surface Mount

Gate To Source Voltage Vgs

20V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Transistor Element Material

SILICON

ECCN Kodu

EAR99
