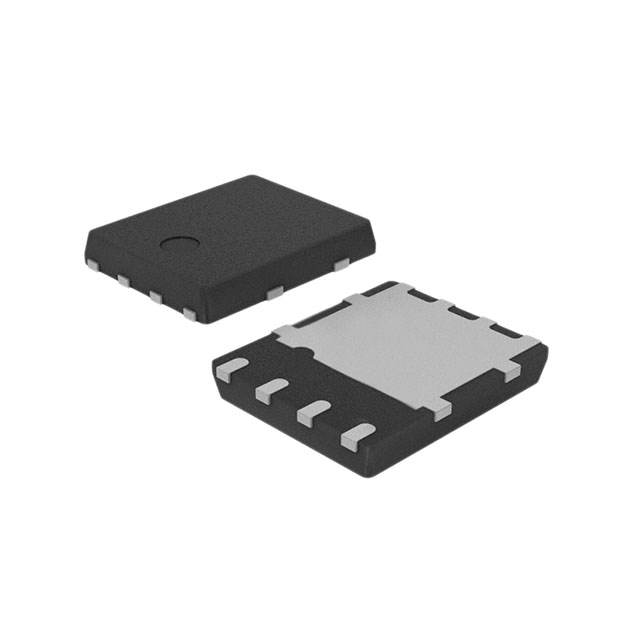

STL75N8LF6

Teknik Özellikler

Jesd30 Code

R-PDSO-N5

Pin Sayısı

8

Transistor Element Material

SILICON

Current Continuous Drain Id25

75A Tc

Input Capacitance Ciss Max Vds

6895pF @ 25V

Turn Off Delay Time

112 ns

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Surface Mount

Vgsth Max Id

1V @ 250μA

Turn On Delay Time

17 ns

Avalanche Energy Rating Eas

670 mJ

Vgs Max

+21V, -16V

Terminal Pozisyonu

DUAL

Transistor Application

SWITCHING

Seri

DeepGATE™, STripFET™ VI

Çalışma Sıcaklığı

-55°C~175°C TJ

Rds On Max Id Vgs

7.4m Ω @ 9A, 10V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Power Dissipation Max

80W Tc

Ambalaj

Tape & Reel (TR)

ECCN Kodu

EAR99

Fet Type

N-Channel

Fall Time Typ

26 ns

Radyasyon Dayanımı

No

Configuration

SINGLE WITH BUILT-IN DIODE

Parça Durumu

Obsolete

Operating Mode

ENHANCEMENT MODE

Continuous Drain Current Id

75A

Gate To Source Voltage Vgs

20V

Drain To Source Voltage Vdss

80V

Kılıf / Paket

8-PowerVDFN

Gate Charge Qg Max Vgs

125nC @ 4.5V

Power Dissipation

80W

Rise Time

14ns

Case Connection

DRAIN

Temel Parça No

STL75

Terminal Sayısı

5

Drive Voltage Max Rds On Min Rds On

5V 10V

Pulsed Drain Currentmax Idm

72A

Pin Sayısı

8
