STL6N3LLH6

Teknik Özellikler

Vgs Max

±20V

Turn On Delay Time

4.8 ns

Genişlik

2.1mm

Rds On Max Id Vgs

25m Ω @ 3A, 10V

Seri

DeepGATE™, STripFET™ VI

Çalışma Sıcaklığı

-55°C~150°C TJ

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Cut Tape (CT)

Power Dissipation Max

2.4W Tc

Element Configuration

Single

Uzunluk

2.1mm

Turn Off Delay Time

9.4 ns

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Surface Mount

Pin Sayısı

6

Input Capacitance Ciss Max Vds

283pF @ 24V

Vgsth Max Id

1V @ 250μA (Min)

Temel Parça No

STL6

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Yükseklik

750μm

Montaj

Surface Mount

Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Fet Type

N-Channel

ECCN Kodu

EAR99

Drain To Source Breakdown Voltage

30V

Fall Time Typ

5.4 ns

Continuous Drain Current Id

6A

Gate To Source Voltage Vgs

20V

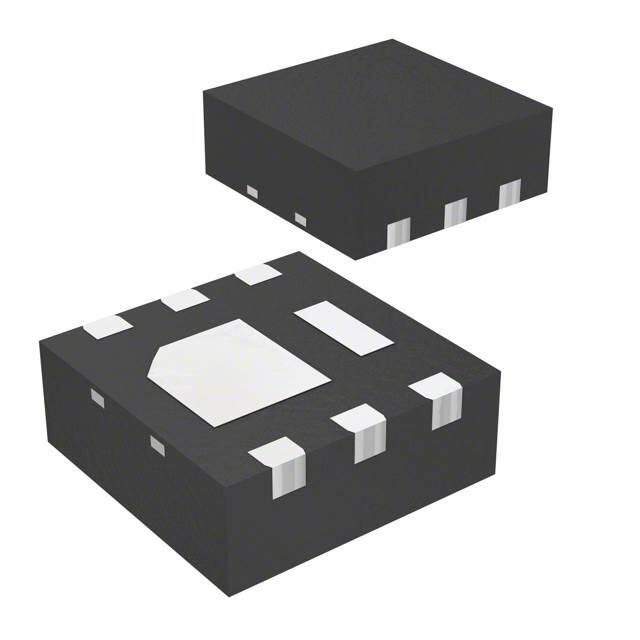

Kılıf / Paket

6-PowerWDFN

Parça Durumu

Active

Drain Currentmax Abs Id

6A

Radyasyon Dayanımı

No

Fabrika Tedarik Süresi

20 Weeks

Gate Charge Qg Max Vgs

3.6nC @ 4.5V

Rise Time

11.2ns
