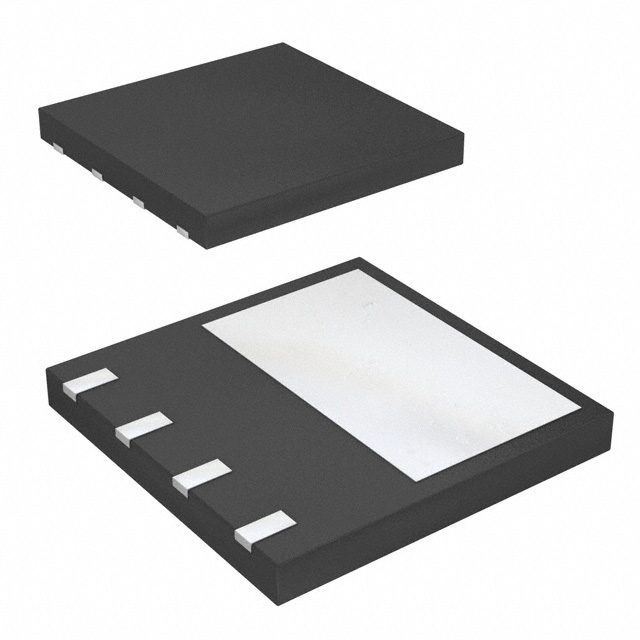

STL57N65M5

Teknik Özellikler

Nem Hassasiyeti (MSL)

3 (168 Hours)

Ambalaj

Digi-Reel®

Power Dissipation Max

2.8W Ta 189W Tc

Element Configuration

Single

Vgs Max

±25V

Turn On Delay Time

84 ns

Rds On Max Id Vgs

69m Ω @ 20A, 10V

Transistor Application

SWITCHING

Vgsth Max Id

5V @ 250μA

Uzunluk

8mm

RoHS Durumu

ROHS3 Compliant

Current Continuous Drain Id25

4.3A Ta 22.5A Tc

Ds Breakdown Voltagemin

650V

Yükseklik

950μm

Montaj

Surface Mount

Pulsed Drain Currentmax Idm

90A

Drive Voltage Max Rds On Min Rds On

10V

Terminal Sayısı

4

Drain To Source Voltage Vdss

650V

Drain Currentmax Abs Id

22A

Parça Durumu

Active

Kurşunsuz

Lead Free

Terminal Formu

NO LEAD

Fabrika Tedarik Süresi

12 Weeks

Gate Charge Qg Max Vgs

110nC @ 10V

Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Fet Type

N-Channel

ECCN Kodu

EAR99

Drainsource On Resistancemax

0.069Ohm

Avalanche Energy Rating Eas

960 mJ

Genişlik

8mm

Çalışma Sıcaklığı

150°C TJ

Seri

MDmesh™ V

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Montaj Tipi

Surface Mount

Turn Off Delay Time

84 ns

Transistor Element Material

SILICON

Jesd30 Code

S-PSSO-N4

Pin Sayısı

8

Input Capacitance Ciss Max Vds

4200pF @ 100V
