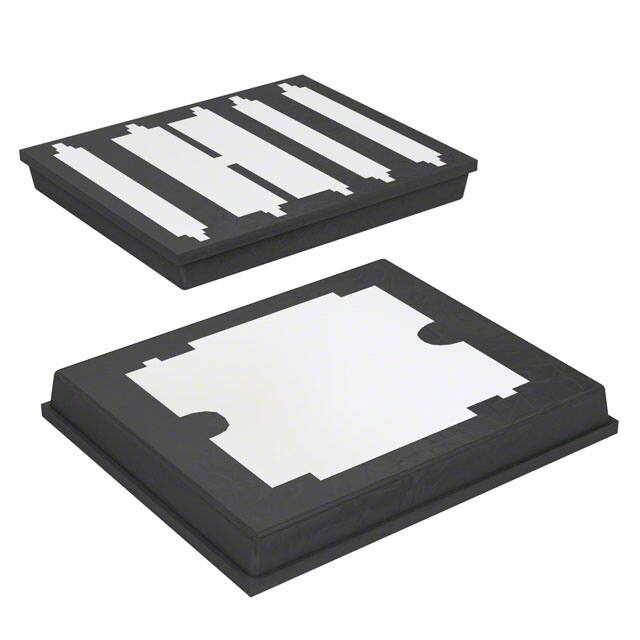

STK800

Teknik Özellikler

Configuration

SINGLE WITH BUILT-IN DIODE

Parça Durumu

Obsolete

Kurşunsuz

Lead Free

Terminal Formu

NO LEAD

Gate Charge Qg Max Vgs

13.4nC @ 4.5V

JESD-609 Kodu

e3

Fet Type

N-Channel

ECCN Kodu

EAR99

Threshold Voltage

2.5V

Voltage Rated Dc

30V

Montaj

Surface Mount

Pulsed Drain Currentmax Idm

80A

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Terminal Sayısı

4

Terminal

SMD/SMT

REACH Uyumluluk Kodu

not_compliant

Qualification Status

Not Qualified

Vgsth Max Id

2.5V @ 250μA

RoHS Durumu

ROHS3 Compliant

Reach Svhc

No SVHC

Current Continuous Drain Id25

20A Tc

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Power Dissipation Max

5.2W Tc

Vgs Max

±16V

Rds On Max Id Vgs

7.8m Ω @ 10A, 10V

Transistor Application

SWITCHING

Continuous Drain Current Id

20A

Kılıf / Paket

PolarPak®

Gate To Source Voltage Vgs

16V

Operating Mode

ENHANCEMENT MODE

Case Connection

SOURCE

Power Dissipation

5.2W

Rise Time

50ns

Direnç

7.8mOhm

Akım Değeri

20A

Drain To Source Breakdown Voltage

30V

Fall Time Typ

15 ns

Nominal Vgs

2.5 V

Number Of Elements

1
