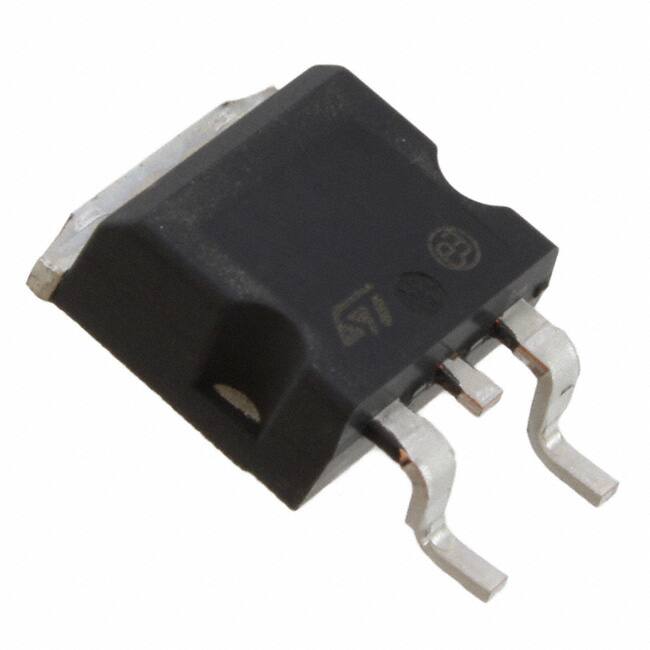

STH360N4F6-2

Teknik Özellikler

Gate Charge Qg Max Vgs

340nC @ 10V

Weight

3.949996g

ECCN Kodu

EAR99

Parça Durumu

Obsolete

Montaj Tipi

Surface Mount

Configuration

Single

Seri

DeepGATE™, STripFET™ VI

Kılıf / Paket

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Power Dissipation Max

300W Tc

Vgs Max

±20V

Drive Voltage Max Rds On Min Rds On

10V

Current Continuous Drain Id25

180A Tc

Nem Hassasiyeti (MSL)

1 (Unlimited)

Continuous Drain Current Id

180A

Rds On Max Id Vgs

1.25m Ω @ 60A, 10V

Input Capacitance Ciss Max Vds

17930pF @ 25V

Vgsth Max Id

4.5V @ 250μA

Fet Type

N-Channel

Montaj

Surface Mount

Number Of Channels

1

Temel Parça No

STH360

Ambalaj

Tape & Reel (TR)

Drain To Source Voltage Vdss

40V

Pin Sayısı

3

Gate To Source Voltage Vgs

20V

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~175°C TJ
