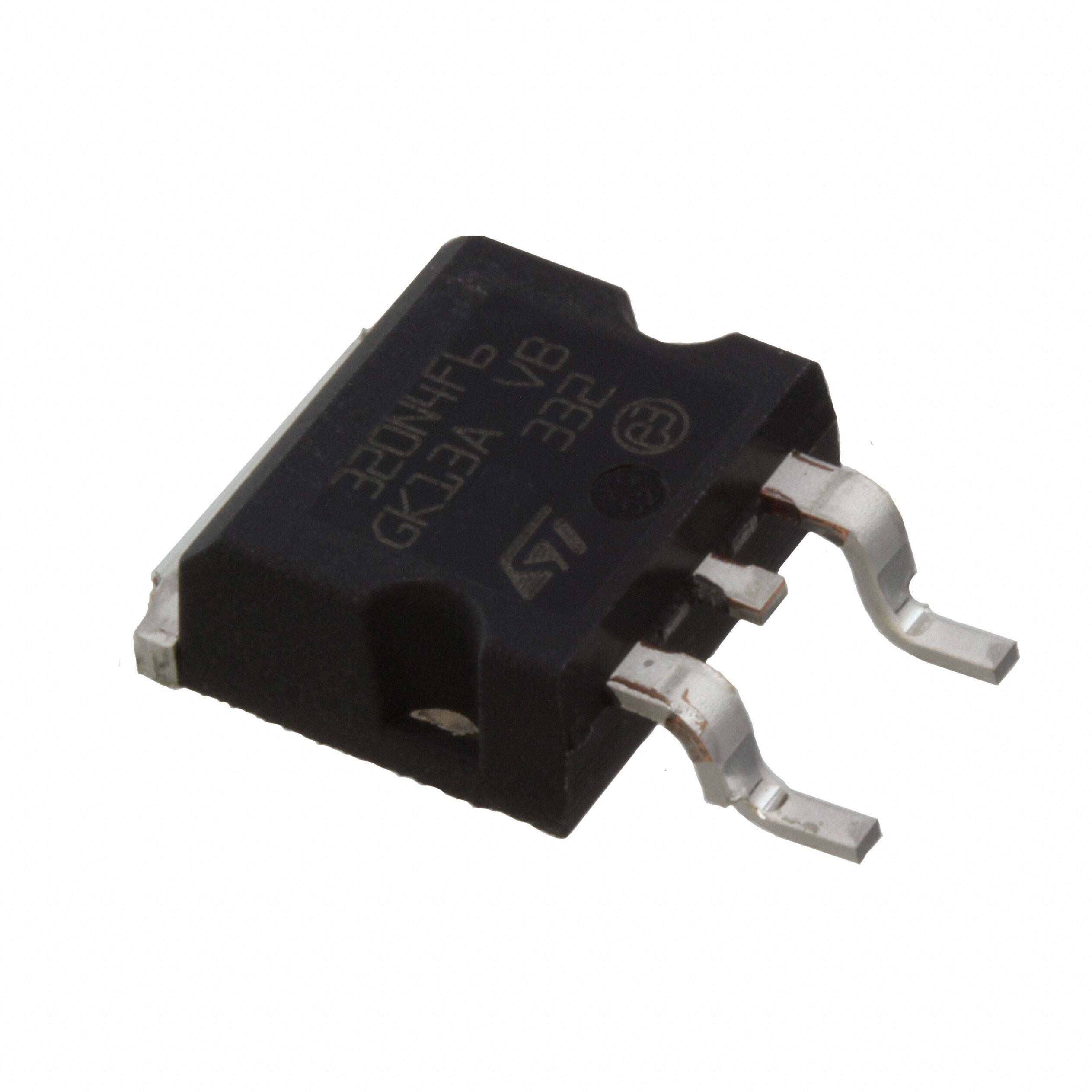

STH320N4F6-2

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Fall Time Typ

95 ns

Çalışma Sıcaklığı

-55°C~175°C TJ

Genişlik

10.4mm

Temel Parça No

STH320

Ambalaj

Cut Tape (CT)

Yükseklik

4.8mm

Pin Sayısı

3

Gate To Source Voltage Vgs

20V

Lifecycle Status

NRND (Last Updated: 8 months ago)

Fet Type

N-Channel

Vgsth Max Id

4V @ 250μA

Turn Off Delay Time

190 ns

Montaj

Surface Mount

Rds On Max Id Vgs

1.3m Ω @ 80A, 10V

Continuous Drain Current Id

200A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Input Capacitance Ciss Max Vds

13800pF @ 15V

Current Continuous Drain Id25

200A Tc

Drive Voltage Max Rds On Min Rds On

10V

Drain To Source Breakdown Voltage

40V

Turn On Delay Time

28 ns

Vgs Max

±20V

Element Configuration

Single

Power Dissipation Max

300W Tc

Kılıf / Paket

TO-263-3, D2Pak (2 Leads + Tab) Variant

Gate Charge Qg Max Vgs

240nC @ 10V

Uzunluk

15.8mm

ECCN Kodu

EAR99

Seri

Automotive, AEC-Q101, DeepGATE™, STripFET™ VI

Parça Durumu

Obsolete

Rise Time

98ns

Montaj Tipi

Surface Mount
