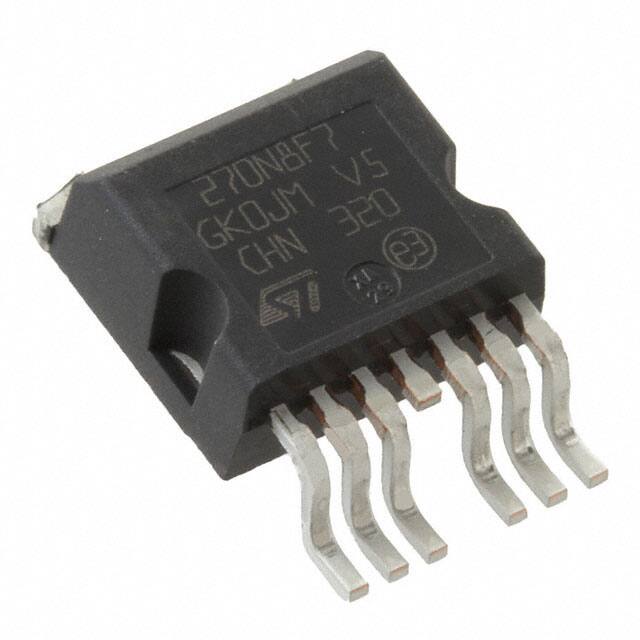

STH270N8F7-6

Teknik Özellikler

Rds On Max Id Vgs

2.1m Ω @ 90A, 10V

Continuous Drain Current Id

180A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Transistor Application

SWITCHING

Input Capacitance Ciss Max Vds

13600pF @ 50V

Case Connection

DRAIN

Current Continuous Drain Id25

180A Tc

Drive Voltage Max Rds On Min Rds On

10V

Jesd30 Code

R-PSSO-G6

Drain To Source Breakdown Voltage

80V

Turn On Delay Time

56 ns

Power Dissipation Max

315W Tc

Number Of Elements

1

Element Configuration

Single

Vgs Max

±20V

Kılıf / Paket

TO-263-7, D2Pak (6 Leads + Tab)

Terminal Formu

GULL WING

Gate Charge Qg Max Vgs

193nC @ 10V

Uzunluk

10.4mm

ECCN Kodu

EAR99

Seri

DeepGATE™, STripFET™ VII

Kurşunsuz

Lead Free

Parça Durumu

Active

Terminal Sayısı

6

Montaj Tipi

Surface Mount

Rise Time

180ns

Radyasyon Dayanımı

No

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

-55°C~175°C TJ

Fall Time Typ

42 ns

Temel Parça No

STH270

Genişlik

15.25mm

Ambalaj

Cut Tape (CT)

Yükseklik

4.8mm

Pin Sayısı

7

Gate To Source Voltage Vgs

20V

Additional Feature

ULTRA LOW RESISTANCE

Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Power Dissipation

315W

Transistor Element Material

SILICON
