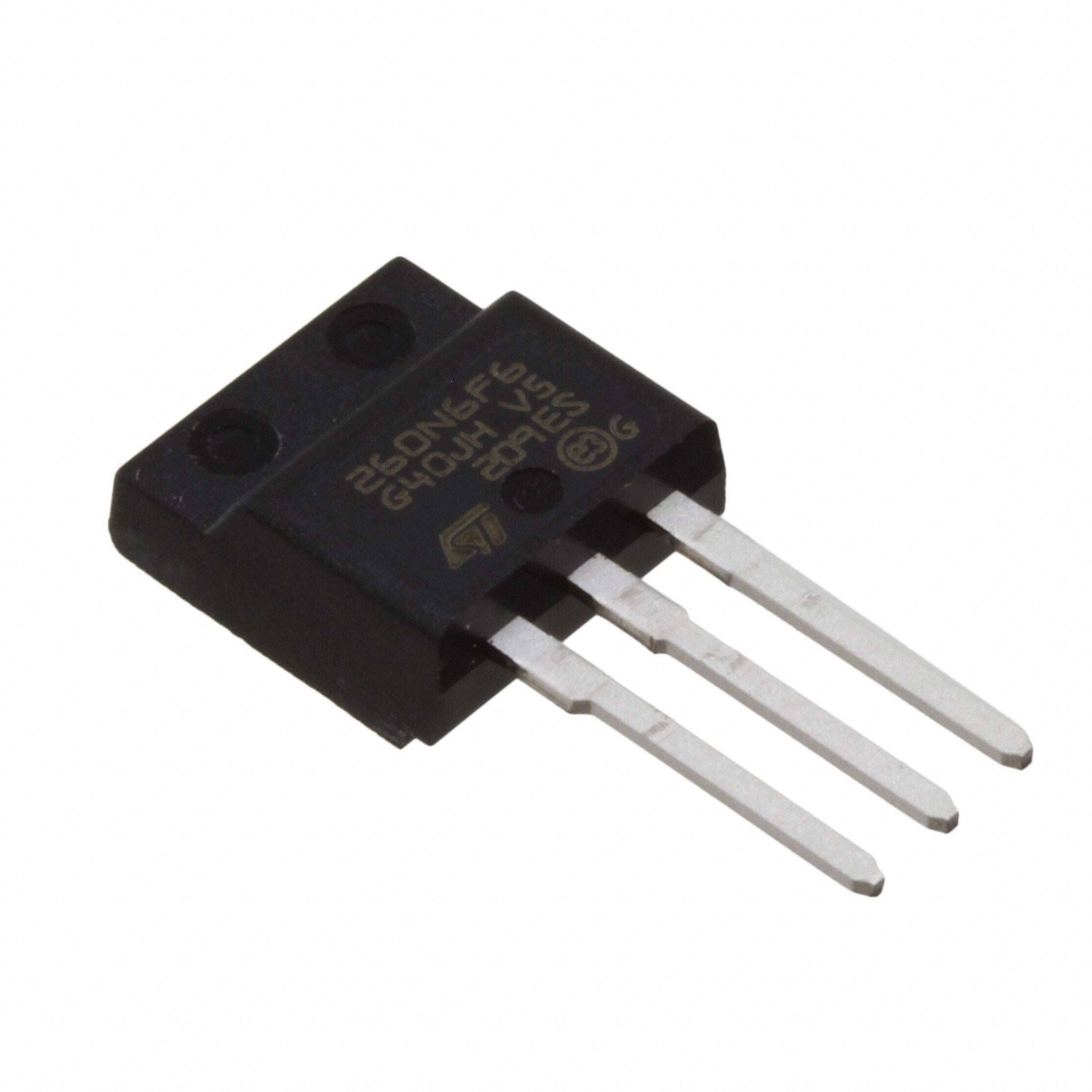

STFI260N6F6

Teknik Özellikler

Pin Sayısı

3

Gate To Source Voltage Vgs

20V

Continuous Drain Current Id

80A

Rds On Max Id Vgs

3m Ω @ 60A, 10V

Element Configuration

Single

Power Dissipation Max

41.7W Tc

Current Continuous Drain Id25

80A Tc

Turn On Delay Time

31.4 ns

ECCN Kodu

EAR99

Drain To Source Voltage Vdss

60V

Input Capacitance Ciss Max Vds

11400pF @ 25V

Çalışma Sıcaklığı

-55°C~175°C TJ

Nem Hassasiyeti (MSL)

1 (Unlimited)

Drive Voltage Max Rds On Min Rds On

10V

Gate Charge Qg Max Vgs

183nC @ 10V

Number Of Channels

1

Turn Off Delay Time

144.4 ns

Weight

2.240009g

Rise Time

165ns

Seri

DeepGATE™, STripFET™ VI

Parça Durumu

Obsolete

Lifecycle Status

OBSOLETE (Last Updated: 7 months ago)

Fet Type

N-Channel

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Vgsth Max Id

4V @ 250μA

Ambalaj

Tube

Montaj Tipi

Through Hole

Temel Parça No

STFI260N

Kılıf / Paket

TO-262-3 Full Pack, I2Pak

Vgs Max

±20V

Fall Time Typ

62.6 ns

Montaj

Through Hole
