STFI11N65M2

Teknik Özellikler

Turn Off Delay Time

26 ns

Gate Charge Qg Max Vgs

12.5nC @ 10V

Number Of Channels

1

Drive Voltage Max Rds On Min Rds On

10V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Input Capacitance Ciss Max Vds

410pF @ 100V

Çalışma Sıcaklığı

150°C TJ

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

ECCN Kodu

EAR99

Turn On Delay Time

9.5 ns

Drain To Source Breakdown Voltage

650V

Power Dissipation Max

25W Tc

Current Continuous Drain Id25

7A Tc

Threshold Voltage

3V

Reach Svhc

No SVHC

Rds On Max Id Vgs

670m Ω @ 3.5A, 10V

Gate To Source Voltage Vgs

25V

Continuous Drain Current Id

7A

Pin Sayısı

3

Direnç

600mOhm

Montaj

Through Hole

Fall Time Typ

15 ns

Vgs Max

±25V

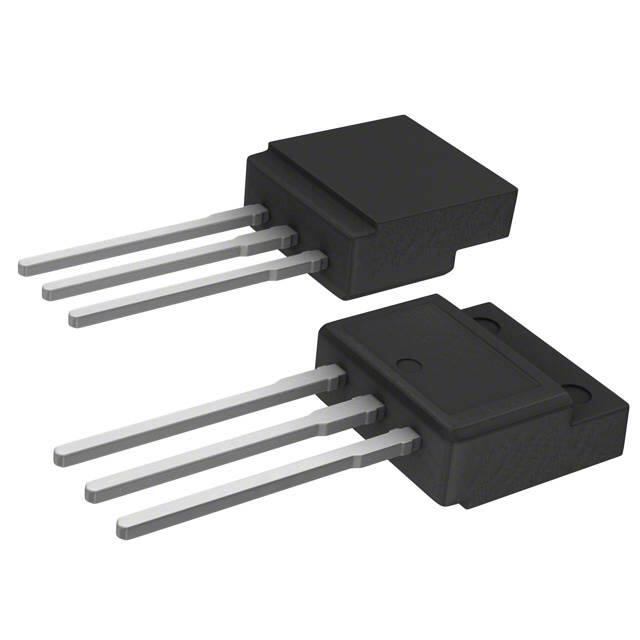

Kılıf / Paket

TO-262-3 Full Pack, I2Pak

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Ambalaj

Tube

Montaj Tipi

Through Hole

Temel Parça No

STFI11N

Vgsth Max Id

4V @ 250μA

RoHS Durumu

ROHS3 Compliant

Fet Type

N-Channel

Rise Time

7.5ns

Seri

MDmesh™ II Plus

Parça Durumu

Obsolete

Weight

2.240009g
