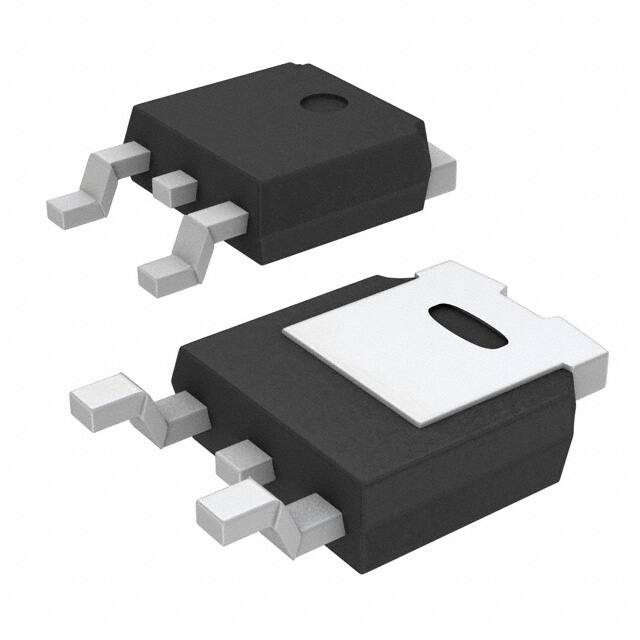

STD9N65M2

Teknik Özellikler

Drive Voltage Max Rds On Min Rds On

10V

Continuous Drain Current Id

5A

Temel Parça No

STD9N

Input Capacitance Ciss Max Vds

315pF @ 100V

Weight

3.949996g

Current Continuous Drain Id25

5A Tc

Kılıf / Paket

TO-252-3, DPak (2 Leads + Tab), SC-63

Turn Off Delay Time

22.5 ns

Seri

MDmesh™

Ambalaj

Cut Tape (CT)

ECCN Kodu

EAR99

Number Of Channels

1

Pin Sayısı

3

RoHS Durumu

ROHS3 Compliant

Montaj

Surface Mount

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Gate Charge Qg Max Vgs

10nC @ 10V

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Montaj Tipi

Surface Mount

Fabrika Tedarik Süresi

16 Weeks

Vgs Max

±25V

Drain To Source Breakdown Voltage

650V

Turn On Delay Time

7.5 ns

Fet Type

N-Channel

Reach Svhc

No SVHC

Rise Time

6.6ns

Parça Durumu

Active

Vgsth Max Id

4V @ 250μA

Gate To Source Voltage Vgs

25V

Threshold Voltage

3V

Fall Time Typ

18 ns

Power Dissipation Max

60W Tc

Çalışma Sıcaklığı

150°C TJ

Rds On Max Id Vgs

900m Ω @ 2.5A, 10V

Nem Hassasiyeti (MSL)

1 (Unlimited)
