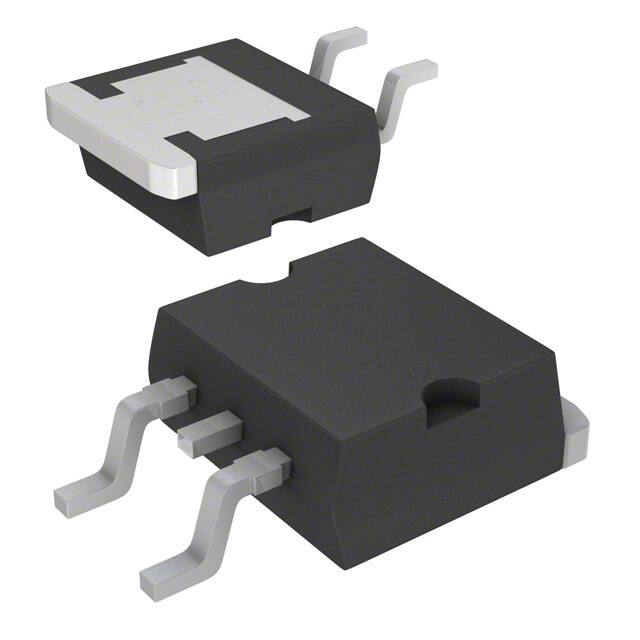

STB45NF06T4

Teknik Özellikler

Fet Type

N-Channel

Terminal

SMD/SMT

Turn Off Delay Time

28 ns

Input Capacitance Ciss Max Vds

980pF @ 25V

JESD-609 Kodu

e3

Nominal Vgs

3 V

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fall Time Typ

10 ns

REACH Uyumluluk Kodu

not_compliant

Gate To Source Voltage Vgs

20V

ECCN Kodu

EAR99

Continuous Drain Current Id

19A

Direnç

23mOhm

Jesd30 Code

R-PSSO-G2

Power Dissipation Max

80W Tc

Çalışma Sıcaklığı

175°C TJ

Terminal Kaplaması

Matte Tin (Sn) - annealed

Current Continuous Drain Id25

38A Tc

Yükseklik

4.6mm

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tape & Reel (TR)

Genişlik

9.35mm

Terminal Formu

GULL WING

Operating Mode

ENHANCEMENT MODE

Transistor Application

SWITCHING

Transistor Element Material

SILICON

Threshold Voltage

3V

Tepe Reflow Süresi (maks. sn)

30

Vgs Max

±20V

Seri

STripFET™ II

Power Dissipation

80W

Drain To Source Breakdown Voltage

60V

Rds On Max Id Vgs

28m Ω @ 19A, 10V

Kılıf / Paket

TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Montaj

Surface Mount

Pin Sayısı

3

Kurşunsuz

Lead Free

Dual Supply Voltage

60V

Pin Sayısı

3
