Adet bazlı fiyat
- 1+ adet$2.15
- 10+ adet$2.02
- 100+ adet$1.91
- 500+ adet$1.80
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Pin Sayısı
- 8
- Drain To Source Voltage Vdss
- 30V
- Radyasyon Dayanımı
- No
- Terminal Pozisyonu
- DUAL
- Ds Breakdown Voltagemin
- 30V
- Fabrika Tedarik Süresi
- 16 Weeks
- Fet Type
- P-Channel
- Power Dissipation Max
- 1W Ta 102W Tc
- Continuous Drain Current Id
- 50A
- Kılıf / Paket

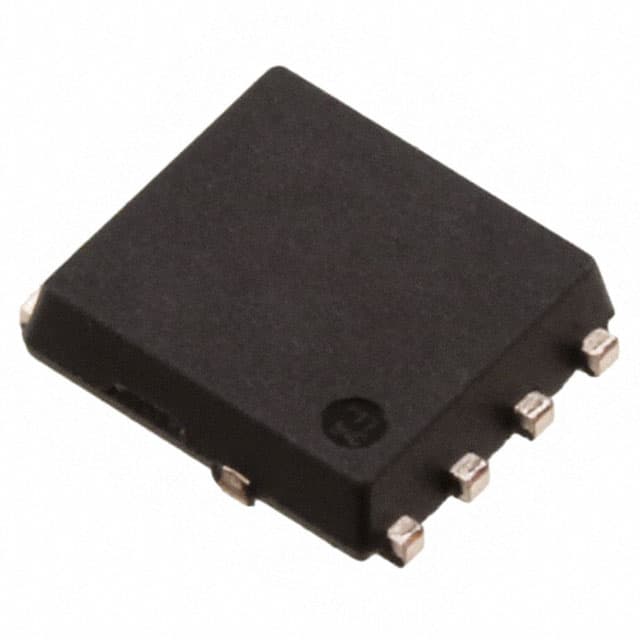

- 8-SMD, Flat Lead Exposed Pad
- Number Of Elements
- 1
- ECCN Kodu
- EAR99
- Montaj
- Surface Mount
- Drive Voltage Max Rds On Min Rds On
- 5V 10V
- Vgsth Max Id
- 2.5V @ 250μA
- Vgs Max
- ±20V
- Montaj Tipi
- Surface Mount
- Turn On Delay Time
- 9 ns
- Yayın Yılı
- 2011
- Gate To Source Voltage Vgs
- 20V
- Çalışma Sıcaklığı
- 175°C TJ
- Transistor Application
- SWITCHING
- Ambalaj
- Tape & Reel (TR)
- Configuration
- SINGLE WITH BUILT-IN DIODE
- Terminal Sayısı
- 5
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fall Time Typ
- 180 ns
- Operating Mode
- ENHANCEMENT MODE
- Current Continuous Drain Id25
- 50A Tc
- Pin Sayısı
- 8
- Turn Off Delay Time
- 230 ns
- Transistor Element Material
- SILICON
- Parça Durumu
- Active
- RoHS Durumu
- ROHS3 Compliant
- Rds On Max Id Vgs
- 8.4m Ω @ 25A, 10V
- Power Dissipation
- 1W
- Input Capacitance Ciss Max Vds
- 3500pF @ 25V
- Gate Charge Qg Max Vgs
- 96nC @ 10V
- Jesd30 Code
- R-PDSO-F5
- Rise Time
- 7ns
