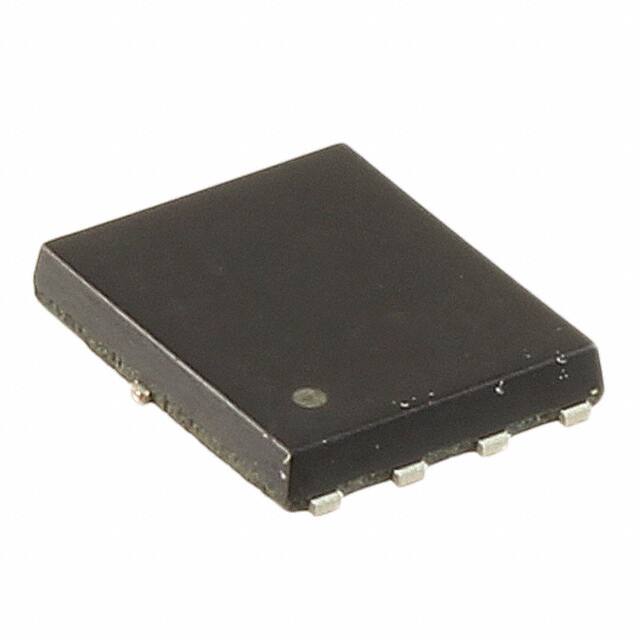

SK8603150L

Teknik Özellikler

Drain Currentmax Abs Id

26A

Continuous Drain Current Id

89A

Rds On Max Id Vgs

2.5m Ω @ 20A, 10V

Çalışma Sıcaklığı

150°C TJ

Montaj Tipi

Surface Mount

Input Capacitance Ciss Max Vds

5180pF @ 10V

Number Of Elements

1

Gate To Source Voltage Vgs

3V

Power Dissipation

34W

Case Connection

DRAIN

Uzunluk

4.9mm

Turn On Delay Time

13 ns

Parça Durumu

Active

Fall Time Typ

9 ns

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Pozisyonu

DUAL

Terminal Sayısı

5

Ambalaj

Cut Tape (CT)

Genişlik

5.9mm

Element Configuration

Single

Transistor Application

SWITCHING

Yayın Yılı

2009

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Turn Off Delay Time

64 ns

Montaj

Surface Mount

Operating Mode

DEPLETION MODE

Jesd30 Code

R-PDSO-F5

Power Dissipation Max

2.9W Ta 34W Tc

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Fabrika Tedarik Süresi

12 Weeks

Fet Type

N-Channel

Vgs Max

±20V

Drain To Source Breakdown Voltage

30V

Transistor Element Material

SILICON

Pulsed Drain Currentmax Idm

120A

REACH Uyumluluk Kodu

unknown

Kılıf / Paket

8-PowerSMD, Flat Leads

Current Continuous Drain Id25

26A Ta 89A Tc
