FDWS9509L-F085

Teknik Özellikler

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Çalışma Sıcaklığı

-55°C~175°C TJ

Fet Type

P-Channel

Parça Durumu

Active

Drain Currentmax Abs Id

65A

Terminal Sayısı

5

Vgs Max

±16V

Ds Breakdown Voltagemin

40V

Current Continuous Drain Id25

65A Tc

Transistor Application

SWITCHING

Case Connection

DRAIN

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

JESD-609 Kodu

e3

Vgsth Max Id

3V @ 250μA

Yüzey Montaj

YES

Montaj Tipi

Surface Mount

Terminal Pozisyonu

DUAL

Terminal Formu

FLAT

Turn On Timemax Ton

22ns

Jedec95 Code

MO-240AA

Seri

Automotive, AEC-Q101, PowerTrench®

Input Capacitance Ciss Max Vds

3360pF @ 20V

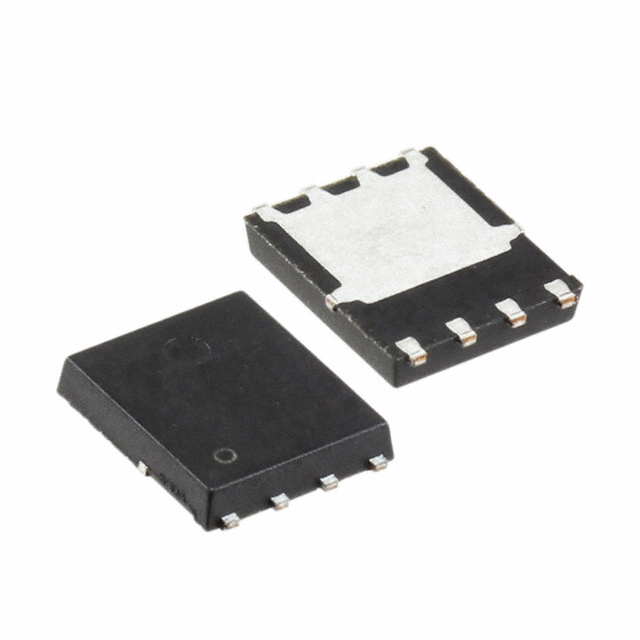

Kılıf / Paket

8-PowerTDFN

Rds On Max Id Vgs

8m Ω @ 65A, 10V

Fabrika Tedarik Süresi

30 Weeks

Transistor Element Material

SILICON

Kurşunsuz Kodu

yes

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Power Dissipation Max

107W Tj

Operating Mode

ENHANCEMENT MODE

Avalanche Energy Rating Eas

84 mJ

Number Of Elements

1

Terminal Kaplaması

Tin (Sn)

Jesd30 Code

R-PDSO-F5

Yayın Yılı

2017

Turn Off Timemax Toff

405ns

RoHS Durumu

RoHS Compliant

Drain To Source Voltage Vdss

40V

Gate Charge Qg Max Vgs

67nC @ 10V
