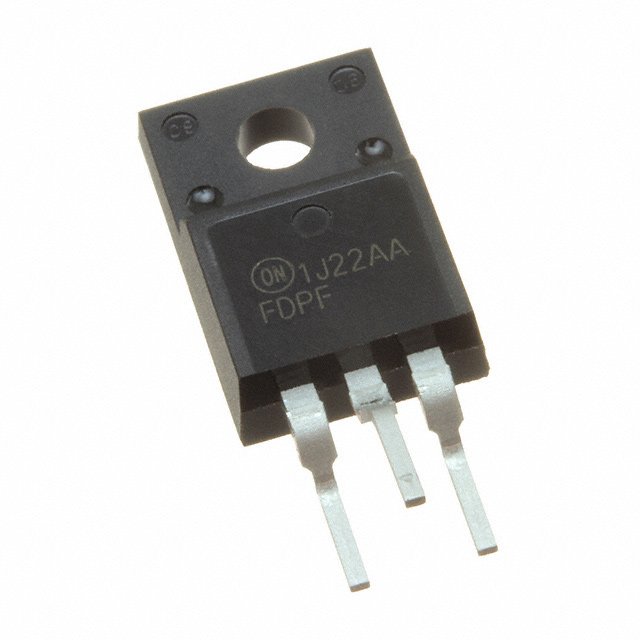

FDPF44N25TRDTU

Teknik Özellikler

Gate Charge Qg Max Vgs

61nC @ 10V

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

4 Weeks

Genişlik

4.9mm

Ambalaj

Tube

Turn On Delay Time

53 ns

Element Configuration

Single

Power Dissipation Max

38W Tc

Uzunluk

10.36mm

Drive Voltage Max Rds On Min Rds On

10V

Vgsth Max Id

5V @ 250μA

RoHS Durumu

ROHS3 Compliant

Current Continuous Drain Id25

44A Tc

Yükseklik

16.07mm

Lifecycle Status

ACTIVE (Last Updated: 4 days ago)

Rise Time

402ns

Çalışma Sıcaklığı

-55°C~150°C TJ

Gate To Source Voltage Vgs

30V

Drain To Source Voltage Vdss

250V

REACH Uyumluluk Kodu

not_compliant

Fall Time Typ

112 ns

Montaj

Through Hole

Kılıf / Paket

TO-220-3 Full Pack, Formed Leads

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Continuous Drain Current Id

44A

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Vgs Max

±30V

Seri

UniFET™

Fet Type

N-Channel

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Number Of Channels

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Weight

2.565g

Parça Durumu

Active

Rds On Max Id Vgs

69m Ω @ 22A, 10V

Turn Off Delay Time

85 ns

Input Capacitance Ciss Max Vds

2870pF @ 25V
