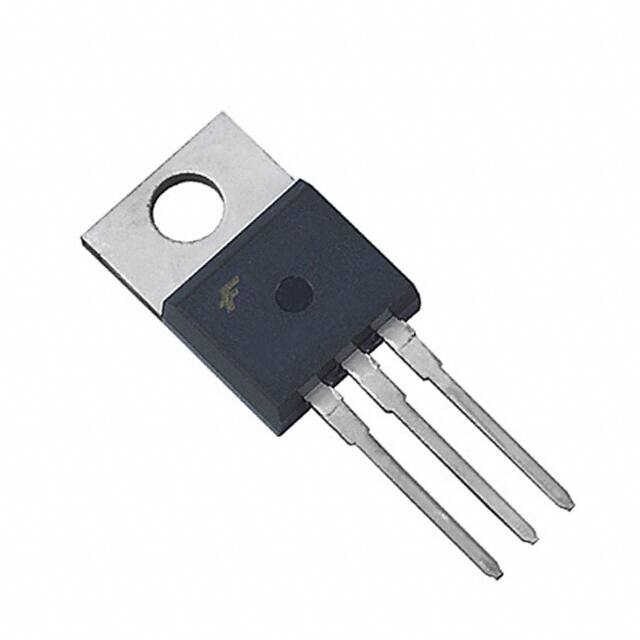

FDP047AN08A0-F102

Teknik Özellikler

Continuous Drain Current Id

80A

Montaj

Through Hole

Power Dissipation

310W

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e3

Drain To Source Breakdown Voltage

75V

HTS Kodu

8541.29.00.95

ECCN Kodu

EAR99

Lifecycle Status

ACTIVE, NOT REC (Last Updated: 1 week ago)

RoHS Durumu

ROHS3 Compliant

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Ambalaj

Tube

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Montaj Tipi

Through Hole

Drive Voltage Max Rds On Min Rds On

6V 10V

Element Configuration

Single

Weight

1.8g

Parça Durumu

Not For New Designs

Power Dissipation Max

310W Tc

Fet Type

N-Channel

Kılıf / Paket

TO-220-3

Gate To Source Voltage Vgs

20V

Çalışma Sıcaklığı

-55°C~175°C TJ

Drain To Source Resistance

4.7mOhm

Terminal Kaplaması

MATTE TIN

Vgs Max

±20V
