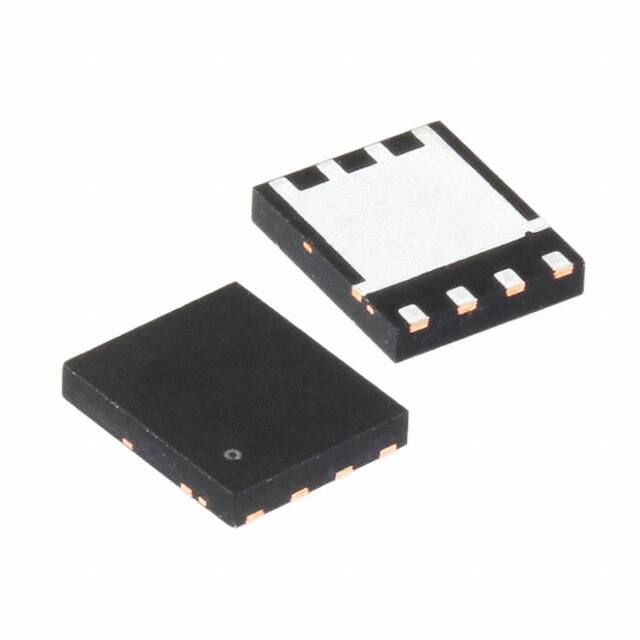

FDMS86255

Teknik Özellikler

ECCN Kodu

EAR99

Rds On Max Id Vgs

12.4m Ω @ 10A, 10V

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Drain Currentmax Abs Id

45A

Yayın Yılı

2010

RoHS Durumu

ROHS3 Compliant

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Power Dissipation

2.7W

Continuous Drain Current Id

10A

Drain To Source Breakdown Voltage

150V

JESD-609 Kodu

e3

Fet Type

N-Channel

Kılıf / Paket

8-PowerTDFN

Terminal Kaplaması

Tin (Sn)

Transistor Application

SWITCHING

Transistor Element Material

SILICON

Çalışma Sıcaklığı

-55°C~150°C TJ

Gate To Source Voltage Vgs

20V

Terminal Pozisyonu

DUAL

REACH Uyumluluk Kodu

not_compliant

Fall Time Typ

12 ns

Drive Voltage Max Rds On Min Rds On

6V 10V

Parça Durumu

Active

Turn On Delay Time

21 ns

Current Continuous Drain Id25

10A Ta 45A Tc

Weight

56.5mg

Rise Time

10ns

Jesd30 Code

R-PDSO-N5

Fabrika Tedarik Süresi

13 Weeks

Jedec95 Code

MO-240AA

Turn Off Delay Time

28 ns

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Kurşunsuz Kodu

yes

Case Connection

DRAIN

Terminal Formu

NO LEAD

Montaj

Surface Mount

Number Of Channels

1

Seri

PowerTrench®
