FDMC7696

Teknik Özellikler

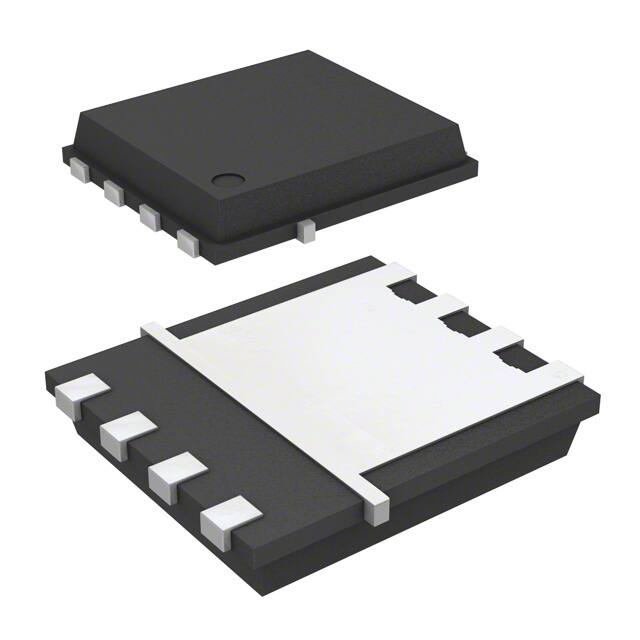

Kılıf / Paket

8-PowerWDFN

Nominal Vgs

2 V

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Vgsth Max Id

3V @ 250μA

Turn Off Delay Time

19 ns

Reach Svhc

No SVHC

Montaj

Surface Mount

Fet Type

N-Channel

Terminal Pozisyonu

DUAL

Drain To Source Breakdown Voltage

30V

Uzunluk

3.3mm

RoHS Durumu

ROHS3 Compliant

Rise Time

2ns

Input Capacitance Ciss Max Vds

1430pF @ 15V

Power Dissipation

25W

Gate Charge Qg Max Vgs

22nC @ 10V

Yükseklik

750μm

Kurşunsuz Kodu

yes

Pulsed Drain Currentmax Idm

50A

Element Configuration

Single

Seri

PowerTrench®

ECCN Kodu

EAR99

Transistor Element Material

SILICON

Turn On Delay Time

9 ns

Fabrika Tedarik Süresi

23 Weeks

Genişlik

3.3mm

JESD-609 Kodu

e4

Pin Sayısı

8

Gate To Source Voltage Vgs

20V

Continuous Drain Current Id

20A

Threshold Voltage

2V

Jesd30 Code

S-PDSO-N5

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Weight

180mg

Operating Mode

ENHANCEMENT MODE

Transistor Application

SWITCHING

Vgs Max

±20V

Rds On Max Id Vgs

11.5m Ω @ 12A, 10V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Continuous Drain Id25

12A Ta 20A Tc
