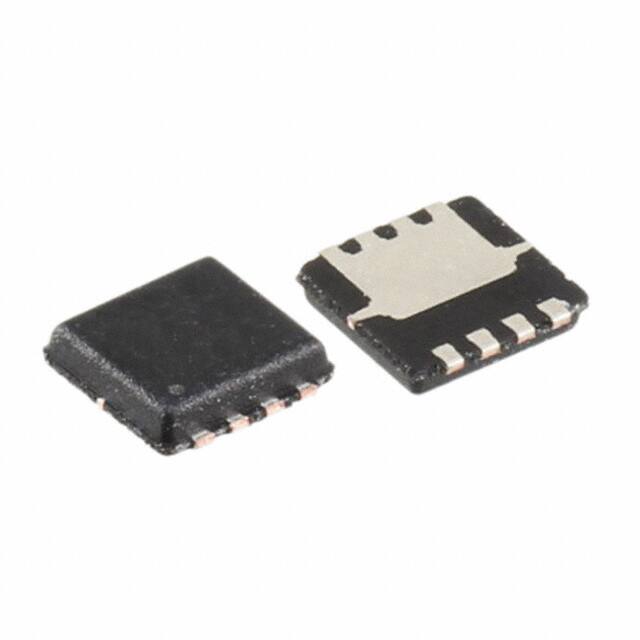

FDMC612PZ

Teknik Özellikler

Seri

PowerTrench®

Yayın Yılı

2017

Pulsed Drain Currentmax Idm

50A

Element Configuration

Single

Transistor Element Material

SILICON

ECCN Kodu

EAR99

Turn On Delay Time

26 ns

JESD-609 Kodu

e4

Genişlik

3.3mm

Pin Sayısı

8

Jedec95 Code

MO-240BA

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Montaj

Surface Mount

Fet Type

P-Channel

Kılıf / Paket

8-PowerWDFN

Lifecycle Status

CONSULT SALES OFFICE (Last Updated: 1 week ago)

Turn Off Delay Time

96 ns

Ds Breakdown Voltagemin

20V

Vgsth Max Id

1.5V @ 250μA

Yükseklik

750μm

Kurşunsuz Kodu

yes

Uzunluk

3.3mm

RoHS Durumu

RoHS Compliant

Rise Time

52ns

Terminal Pozisyonu

DUAL

Number Of Channels

1

Power Dissipation

2.3W

Input Capacitance Ciss Max Vds

7995pF @ 10V

Drain To Source Voltage Vdss

20V

Gate Charge Qg Max Vgs

74nC @ 4.5V

Power Dissipation Max

2.3W Ta 26W Tc

Montaj Tipi

Surface Mount

Rds On Max Id Vgs

8.4m Ω @ 14A, 4.5V

Vgs Max

±12V

Transistor Application

SWITCHING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Continuous Drain Id25

14A Ta

Ambalaj

Tape & Reel (TR)

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Fall Time Typ

81 ns
