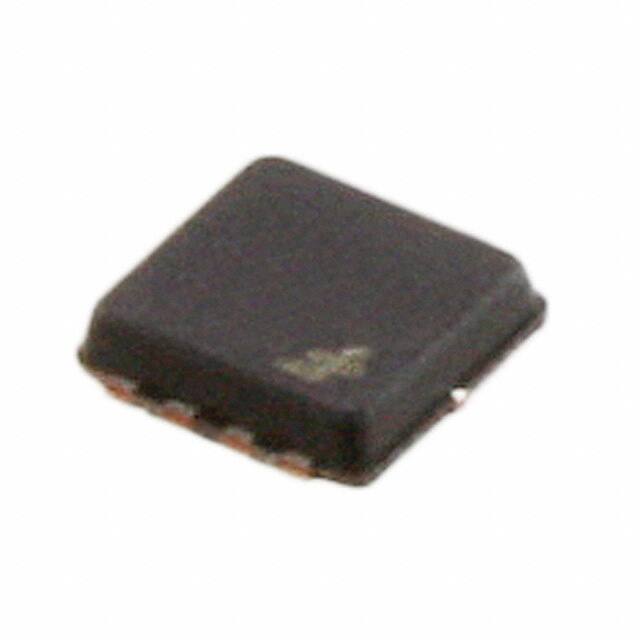

FDMC3612

Teknik Özellikler

Operating Mode

ENHANCEMENT MODE

Weight

180mg

Continuous Drain Current Id

3.3A

Threshold Voltage

2.5V

Jesd30 Code

S-PDSO-N5

Drive Voltage Max Rds On Min Rds On

6V 10V

Gate To Source Voltage Vgs

20V

Contact Plating

Gold

Fall Time Typ

2 ns

Terminal Sayısı

5

Avalanche Energy Rating Eas

32 mJ

Parça Durumu

Active

Number Of Elements

1

Radyasyon Dayanımı

No

Case Connection

DRAIN

Çalışma Sıcaklığı

-55°C~150°C TJ

Montaj Tipi

Surface Mount

Power Dissipation Max

2.3W Ta 35W Tc

Kurşunsuz

Lead Free

Rds On Max Id Vgs

110m Ω @ 3.3A, 10V

Vgs Max

±20V

Transistor Application

SWITCHING

Ambalaj

Tape & Reel (TR)

Current Continuous Drain Id25

3.3A Ta 16A Tc

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yükseklik

800μm

Kurşunsuz Kodu

yes

Terminal Pozisyonu

DUAL

Drain To Source Breakdown Voltage

100V

Rise Time

2.8ns

RoHS Durumu

ROHS3 Compliant

Uzunluk

3.3mm

Input Capacitance Ciss Max Vds

880pF @ 50V

Power Dissipation

2.3W

Number Of Channels

1

Max Junction Temperature Tj

150°C

Gate Charge Qg Max Vgs

21nC @ 10V

Reach Svhc

No SVHC

Montaj

Surface Mount

Fet Type

N-Channel
