FDMC2514SDC

Teknik Özellikler

Gate Charge Qg Max Vgs

44nC @ 10V

Rise Time

3.6ns

RoHS Durumu

ROHS3 Compliant

Uzunluk

3.3mm

Drain To Source Breakdown Voltage

25V

Drainsource On Resistancemax

0.0035Ohm

Power Dissipation

3W

Input Capacitance Ciss Max Vds

2705pF @ 13V

Yükseklik

950μm

Kurşunsuz Kodu

yes

Lifecycle Status

ACTIVE (Last Updated: 4 days ago)

Turn Off Delay Time

26 ns

Additional Feature

ULTRA-LOW RESISTANCE

Vgsth Max Id

3V @ 1mA

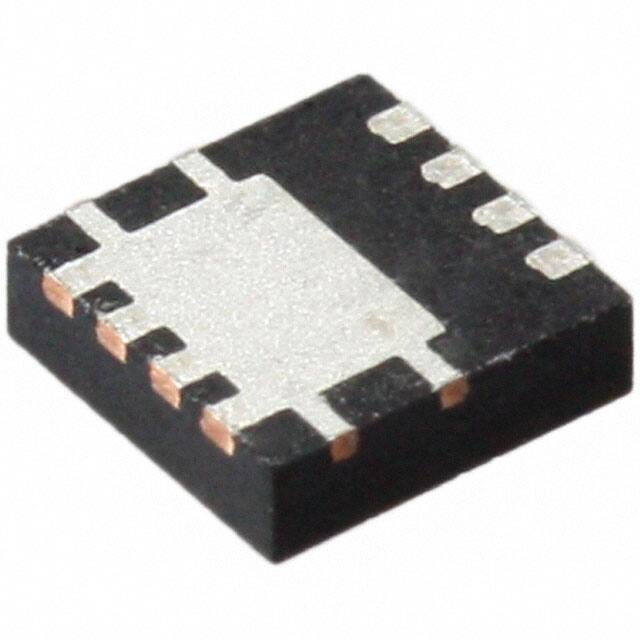

Kılıf / Paket

8-PowerTDFN

Nominal Vgs

1.7 V

Fet Type

N-Channel

Montaj

Surface Mount

Reach Svhc

No SVHC

Jedec95 Code

MO-240BA

Genişlik

3.3mm

JESD-609 Kodu

e3

Pin Sayısı

8

Transistor Element Material

SILICON

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

8 Weeks

Turn On Delay Time

11 ns

Pulsed Drain Currentmax Idm

200A

Element Configuration

Single

Yayın Yılı

2009

Seri

Dual Cool™, PowerTrench®, SyncFET™

Jesd30 Code

S-PDSO-N5

Threshold Voltage

1.7V

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Continuous Drain Current Id

24A

Weight

32.13mg

Operating Mode

ENHANCEMENT MODE

Gate To Source Voltage Vgs

20V

Drain Currentmax Abs Id

40A

Çalışma Sıcaklığı

-55°C~150°C TJ
