FDMC012N03

Teknik Özellikler

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Weight

152.7mg

Kurşunsuz Kodu

yes

Drain To Source Voltage Vdss

30V

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Gate Charge Qg Max Vgs

110nC @ 10V

RoHS Durumu

ROHS3 Compliant

Rise Time

5.5ns

Continuous Drain Current Id

185A

Input Capacitance Ciss Max Vds

8183pF @ 15V

Fet Type

N-Channel

Gate To Source Voltage Vgs

12V

Montaj

Surface Mount

Tepe Reflow Sıcaklığı (°C)

260

Lifecycle Status

ACTIVE (Last Updated: 4 days ago)

Turn Off Delay Time

43 ns

Vgsth Max Id

2V @ 250μA

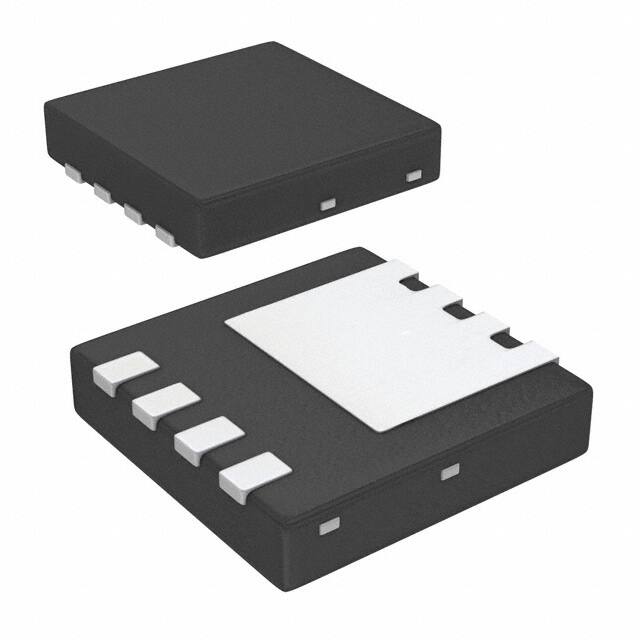

Kılıf / Paket

8-PowerWDFN

REACH Uyumluluk Kodu

not_compliant

JESD-609 Kodu

e3

Parça Durumu

Active

Pin Sayısı

8

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

12 Weeks

Terminal Kaplaması

Tin (Sn)

Fall Time Typ

4.5 ns

Turn On Delay Time

16 ns

Çalışma Sıcaklığı

-55°C~150°C TJ

Montaj Tipi

Surface Mount

Power Dissipation Max

2.3W Ta 64W Tc

Seri

PowerTrench®

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Current Continuous Drain Id25

35A Ta 185A Tc

Element Configuration

Single

Rds On Max Id Vgs

1.23m Ω @ 35A, 10V

Vgs Max

±12V
