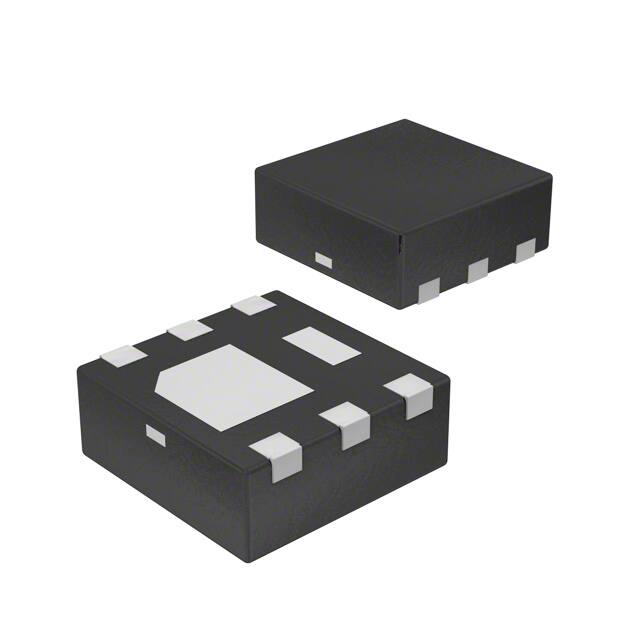

FDMA908PZ

Teknik Özellikler

Yayın Yılı

2017

Seri

PowerTrench®

Element Configuration

Single

Genişlik

2.05mm

JESD-609 Kodu

e4

Pin Sayısı

6

Transistor Element Material

SILICON

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

16 Weeks

Turn On Delay Time

11 ns

Fet Type

P-Channel

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Montaj

Surface Mount

Lifecycle Status

ACTIVE (Last Updated: 4 days ago)

Turn Off Delay Time

131 ns

Vgsth Max Id

1V @ 250μA

Kılıf / Paket

6-WDFN Exposed Pad

Yükseklik

850μm

Feedback Capmax Crss

903 pF

Kurşunsuz Kodu

yes

Max Junction Temperature Tj

150°C

Drain To Source Voltage Vdss

12V

Gate Charge Qg Max Vgs

34nC @ 4.5V

Uzunluk

2.05mm

RoHS Durumu

ROHS3 Compliant

Rise Time

12ns

Drain To Source Breakdown Voltage

-12V

Terminal Pozisyonu

DUAL

Number Of Channels

1

Power Dissipation

2.4W

Input Capacitance Ciss Max Vds

3957pF @ 6V

Kurşunsuz

Lead Free

Power Dissipation Max

2.4W Ta

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Continuous Drain Id25

12A Ta

Ambalaj

Tape & Reel (TR)

Vgs Max

±8V

Rds On Max Id Vgs

12.5m Ω @ 12A, 4.5V

Transistor Application

SWITCHING
