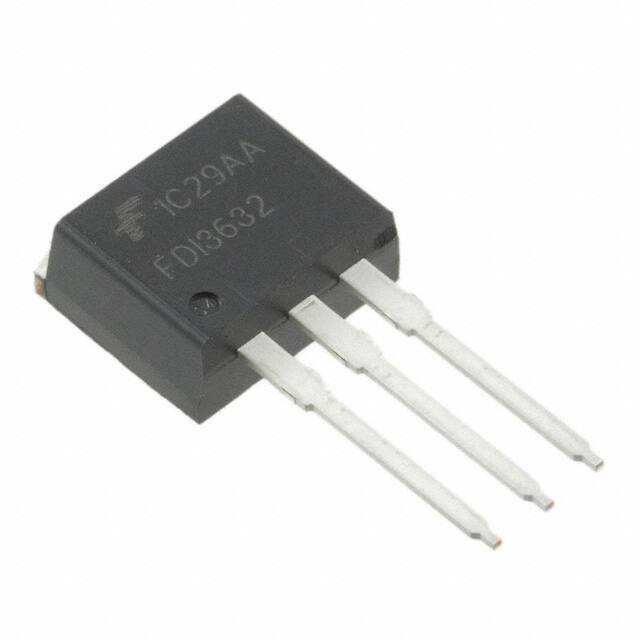

FDI3632

Teknik Özellikler

Kılıf / Paket

TO-262-3 Long Leads, I2Pak, TO-262AA

Vgsth Max Id

4V @ 250μA

Turn Off Delay Time

96 ns

Voltage Rated Dc

100V

Gate To Source Voltage Vgs

20V

Montaj

Through Hole

Fet Type

N-Channel

Input Capacitance Ciss Max Vds

6000pF @ 25V

Continuous Drain Current Id

80A

Power Dissipation

310W

Drain To Source Breakdown Voltage

100V

Maks. Çalışma Sıcaklığı

175°C

Rise Time

39ns

RoHS Durumu

RoHS Compliant

Gate Charge Qg Max Vgs

110nC @ 10V

Drain To Source Voltage Vdss

100V

Drive Voltage Max Rds On Min Rds On

6V 10V

Tedarikçi Cihaz Paketi

I2PAK (TO-262)

Weight

2.084g

Vgs Max

±20V

Rds On Max Id Vgs

9mOhm @ 80A, 10V

Drain To Source Resistance

7.5mOhm

Rds On Max

9 mΩ

Element Configuration

Single

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Current Continuous Drain Id25

12A Ta 80A Tc

Seri

PowerTrench®

Power Dissipation Max

310W Tc

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Input Capacitance

6nF

Yayın Yılı

2004

Radyasyon Dayanımı

No

Number Of Elements

1

Çalışma Sıcaklığı

-55°C~175°C TJ

Min. Çalışma Sıcaklığı

-55°C

Fall Time Typ

46 ns

Turn On Delay Time

30 ns

Parça Durumu

Obsolete
