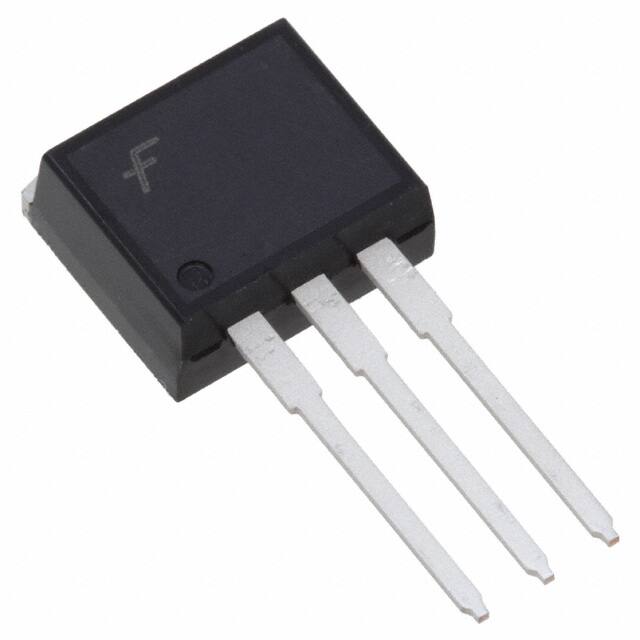

FDI045N10A-F102

Teknik Özellikler

Gate To Source Voltage Vgs

20V

Montaj

Through Hole

Fet Type

N-Channel

Kılıf / Paket

TO-262-3 Long Leads, I2Pak, TO-262AA

Turn Off Delay Time

50 ns

Vgsth Max Id

4V @ 250μA

Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Kurşunsuz Kodu

yes

Yükseklik

9.65mm

Operating Mode

ENHANCEMENT MODE

Weight

2.084g

Continuous Drain Current Id

120A

Power Dissipation

263W

Input Capacitance Ciss Max Vds

5270pF @ 50V

Uzunluk

10.29mm

RoHS Durumu

ROHS3 Compliant

Rise Time

26ns

Drain To Source Breakdown Voltage

100V

Drive Voltage Max Rds On Min Rds On

10V

Gate Charge Qg Max Vgs

74nC @ 10V

Seri

PowerTrench®

Montaj Tipi

Through Hole

Power Dissipation Max

263W Tc

Vgs Max

±20V

Rds On Max Id Vgs

4.5m Ω @ 100A, 10V

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Continuous Drain Id25

120A Tc

Element Configuration

Single

Fabrika Tedarik Süresi

9 Weeks

Fall Time Typ

15 ns

Turn On Delay Time

23 ns

Pin Sayısı

3

Parça Durumu

Active

Genişlik

4.83mm

Radyasyon Dayanımı

No

Number Of Elements

1

Çalışma Sıcaklığı

-55°C~175°C TJ
