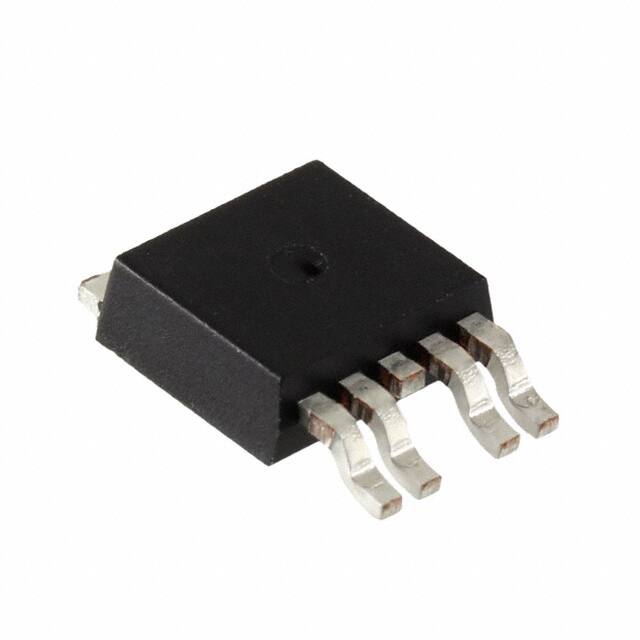

FDD1600N10ALZD

Teknik Özellikler

Drain To Source Breakdown Voltage

100V

Rds On Max Id Vgs

160m Ω @ 3.4A, 10V

Vgs Max

±20V

Seri

PowerTrench®

Kurşunsuz Kodu

yes

Pin Sayısı

3

Kılıf / Paket

TO-252-5, DPak (4 Leads + Tab), TO-252AD

Montaj

Surface Mount

Lifecycle Status

LAST SHIPMENTS (Last Updated: 6 days ago)

Rise Time

2ns

Drainsource On Resistancemax

0.16Ohm

Drive Voltage Max Rds On Min Rds On

5V 10V

Uzunluk

6.73mm

Vgsth Max Id

2.8V @ 250μA

Element Configuration

Single

Number Of Elements

1

Terminal Sayısı

4

Gate Charge Qg Max Vgs

3.61nC @ 10V

Montaj Tipi

Surface Mount

Turn On Delay Time

7 ns

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Weight

260.37mg

JESD-609 Kodu

e3

Turn Off Delay Time

13 ns

Input Capacitance Ciss Max Vds

225pF @ 50V

Case Connection

DRAIN

Fet Type

N-Channel

ECCN Kodu

EAR99

Continuous Drain Current Id

6.8A

Gate To Source Voltage Vgs

20V

Fall Time Typ

2 ns

HTS Kodu

8541.29.00.95

Current Continuous Drain Id25

6.8A Tc

Yükseklik

2.39mm

RoHS Durumu

RoHS Compliant

Terminal Kaplaması

Tin (Sn)

Çalışma Sıcaklığı

-55°C~150°C TJ

Power Dissipation Max

14.9W Tc

Jesd30 Code

R-PSSO-G4
