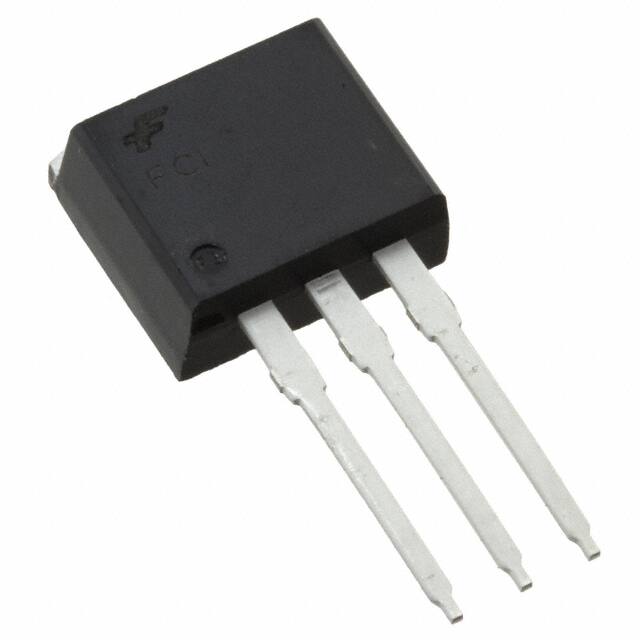

FCI7N60

Teknik Özellikler

Kurşunsuz Kodu

yes

Montaj

Through Hole

Rise Time

55ns

Pin Sayısı

3

Continuous Drain Current Id

7A

Operating Mode

ENHANCEMENT MODE

Drain Currentmax Abs Id

7A

RoHS Durumu

ROHS3 Compliant

Terminal Sayısı

3

Voltage Rated Dc

600V

Çalışma Sıcaklığı

-55°C~150°C TJ

Terminal Kaplaması

Tin (Sn)

Gate To Source Voltage Vgs

30V

Input Capacitance Ciss Max Vds

920pF @ 25V

Reach Svhc

No SVHC

Power Dissipation Max

83W Tc

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e3

Weight

2.084g

Threshold Voltage

3V

Akım Değeri

7A

Uzunluk

10.29mm

Drive Voltage Max Rds On Min Rds On

10V

Yükseklik

11.05mm

Element Configuration

Single

Turn On Delay Time

35 ns

Power Dissipation

83W

Qualification Status

Not Qualified

Rds On Max Id Vgs

600m Ω @ 3.5A, 10V

Current Continuous Drain Id25

7A Tc

Transistor Application

SWITCHING

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Kılıf / Paket

TO-262-3 Long Leads, I2Pak, TO-262AA

Gate Charge Qg Max Vgs

30nC @ 10V

Turn Off Delay Time

75 ns

Drain To Source Breakdown Voltage

600V

REACH Uyumluluk Kodu

not_compliant

Ambalaj

Tube

Number Of Elements

1

Seri

SuperFET™
